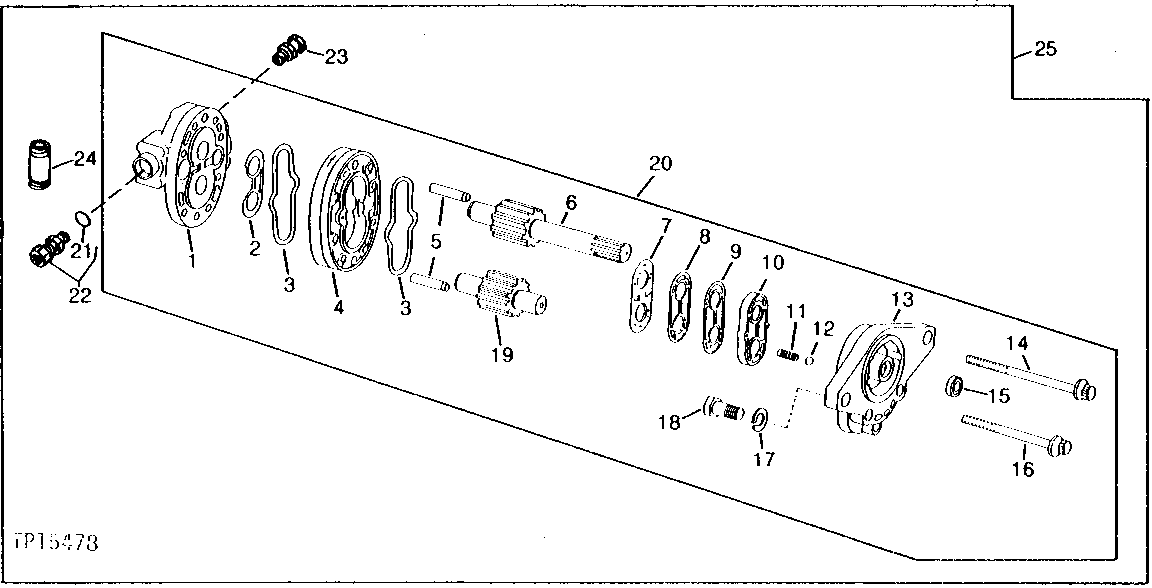

HYDRAULIC PUMP (23 GPM (87 DM3/MIN) (LOADER AND BULLDOZER WITH BACKHOE) [02F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	BACK, WITH BUSHING ( AT39025 NO LONGER AVAILABLE)
2	-	1	Part 2	(A) THRUST, BACK ( T32081 NO LONGER AVAILABLE)
3	T40419	2	PACKING	(A)
4	-	1	Part 4	( T40417 NO LONGER AVAILABLE)
5	-	2	Part 5	( U17301 NO LONGER AVAILABLE)
6	-	1	Part 6	DRIVE ( AT31209 USE IF AVAILABLE)
7	-	1	Part 7	(A) (SUB AT39028)
8	-	1	Part 8	(A) (SUB AT39028)
9	-	1	Part 9	(A) (SUB AT39028)
10	-	1	Part 10	(A) (SUB AT39028)
11	-	1	Part 11	(A) ( U11744 NO LONGER AVAILABLE)
12	-	1	Part 12	(A) ( U11747 NO LONGER AVAILABLE)
13	-	1	Part 13	( AT39024 NO LONGER AVAILABLE) (SUB AT52687 IF AVAILABLE)
14	-	4	Part 14	( H29856 NO LONGER AVAILABLE)
15	AT59652	1	SEAL	(A) (SUB FOR U13281)
16	-	4	Part 16	( U13342 NO LONGER AVAILABLE)
17	12H301	2	Lock Washer	1/2"
18	19H2993	2	Cap Screw	1/2" X 1-1/2"
19	-	1	Part 19	IDLER ( AT31210 USE IF AVAILABLE)
20	AT38801	1	PUMP	(ALSO ORDER (2) 19H2898 AND (2) 12H301)
21	U12547	1	O-Ring	-
22	AU11654	1	FITTING	-
23	JD150	1	UNION FITTING	-
24	29H747	1	THREADED NIPPLE	IN RETURN LINE
25	AT22614	1	KIT	(USE IF AVAILABLE) HYDRAULIC PUMP, (INCLUDES T105547, T24850 AND (2) P46402)
25	AT38801	1	PUMP	(ALSO ORDER AU11654 AND JD150)
..	T43514	1	Gasket	(56 G (2 OZ.) BOTTLE) (SUB FOR AT26340)
..	AT39028	1	SEAL KIT	-

HYDRAULIC PUMP (23 GPM (87 DM3/MIN) (LOADER AND BULLDOZER WITH BACKHOE) [02F03]
