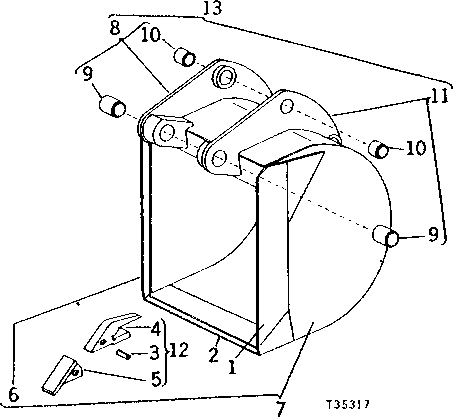

HEAVY-DUTY BUCKETS (WITH CURVED PIVOT PLATES) (9300 BACKHOE) [03C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38875	1	CUTTING EDGE	15.9 MM X 127.0 MM X 876.3 MM (5/8" X 5" X 34-1/2")
2	T38856	1	CUTTING EDGE	22.2 MM X 15.3 MM X 425.5 MM FOR 457 MM (18") BUCKET
2	T38862	1	CUTTING EDGE	22.2 MM X 15.3 MM X 577.9 MM FOR 609 MM (24") BUCKET
2	T38865	1	CUTTING EDGE	22.2 MM X 15.3 MM X 730.3 MM FOR 762 MM (30") BUCKET
3	T40910	1	PIN	(SUB FOR U13927) (4 USED WITH AT37726, AND AT37727, 5 USED WITH AT37728)
4	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750) 23.9 MM (15/16") (4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728)
5	U42751	1	POINT	(4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728)
5	T56524	1	POINT	STARPOINT (4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728)
5	T230SP	1	Tooth	FORGED (4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728) (SUB FOR T54317)
6	T38876	1	CUTTING EDGE	L.H. (5/8" X 5" X 34-1/2") 15.9 MM X 127.0 MM X 876.3 MM
7	AT37726	1	BACKHOE BUCKET	457 MM (18") (SUB AT76972)
7	AT37727	1	BACKHOE BUCKET	609 MM (24") (SUB AT76971)
7	AT37728	1	BACKHOE BUCKET	762 MM (30") (SUB AT76969)
8	-	1	Part 14	L.H. (SUB AT36086)
9	T105987	2	BUSHING	(SUB FOR U42736)
10	T105988	4	Bushing	(SUB FOR U42739)
11	-	1	Part 17	R.H. (SUB AT36086)
12	-	1	Part 18	23.9 MM (15/16") (4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
13	AT36086	1	PLATE	-

HEAVY-DUTY BUCKETS (WITH CURVED PIVOT PLATES) (9300 BACKHOE) [03C19]
