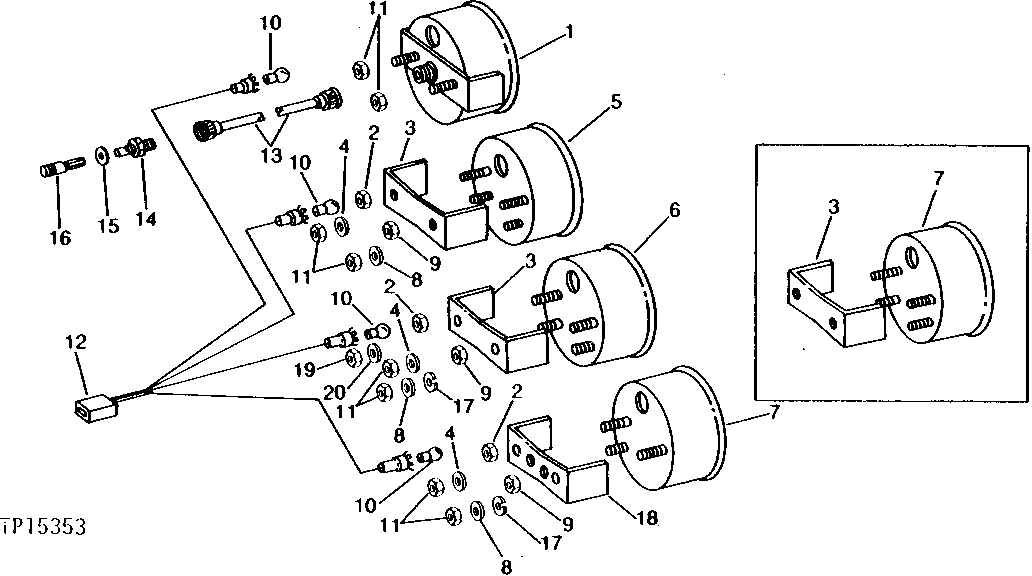

GAUGES AND GAUGE LIGHT HARNESS [02C14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT148149	1	TACHOMETER	(SUB FOR AT41807)
1	AT41807	1	TACHOMETER	(USE IF AVAILABLE)
2	14H631	3	Nut	0.190"
3	T39395	3	BRACKET	-
3	T39395	2	BRACKET	-
4	12H295	3	Lock Washer	0.190"
5	AT41802	1	AMMETER	-
5	AT61466	1	VOLTMETER	(SUB AT104767 AND T118593 BRACKET. REPLACE HARNESS EYELETS WITH R65595 AND U46370)
6	-	1	Part 9	ENGINE TEMPERATURE (STEWART-WARNER) (SUB AT149018) (SUB FOR AT37410) ( AT61467 USE IF AVAILABLE)
6	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
7	AT39728	1	GAUGE	ENGINE OIL PRESSURE
7	AT37411	1	PRESSURE GAUGE	ENGINE OIL
8	12M7084	3	Lock Washer	4.300 MM
9	14H605	3	Nut	0.164"
10	AR56675	1	BULB	(3 USED WITHOUT TACHOMETER, 4 USED WITH TACHOMETER) (SUB FOR AT22970)
11	14H631	1	Nut	0.190", (6 USED WITHOUT TACHOMETER, 8 USED WITH TACHOMETER)
12	AT41806	1	WIRING HARNESS	(WITHOUT TACHOMETER)
12	AT41803	1	WIRING HARNESS	(WITH TACHOMETER)
13	AT31116	1	DRIVE CABLE	TACHOMETER
14	T22537	1	Fitting	-
15	B3285R	1	Washer	-
16	T22536	1	Gear	-
17	12H295	6	Lock Washer	0.190", (6 USED WITHOUT TACHOMETER, 8 USED WITH TACHOMETER)
18	T38594	1	BRACKET	-
19	14H631	1	Nut	0.190"
20	12H295	1	Lock Washer	0.190"

GAUGES AND GAUGE LIGHT HARNESS [02C14]
