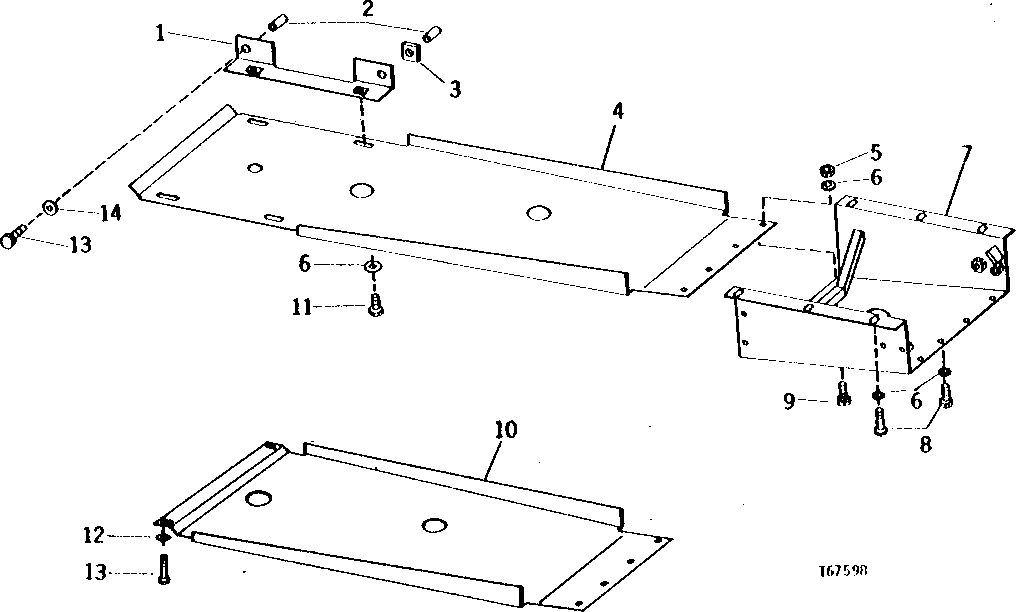

FRONT AND REAR BOTTOM GUARD (WITH OR WITHOUT DRAWBAR OR BOTTOM GUARD COUNTERWEIGHT) [02C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT33423	2	BRACKET	REAR
2	T43702	4	BUSHING	-
3	T16437	2	STRAP	-
4	T34406	1	GUARD	REAR BOTTOM (USED WITHOUT COUNTERWEIGHT)
5	14H1039	4	Nut	5/8"
6	24M7241	18	Washer	17 X 34 X 4 MM, (SUB FOR T40728)
7	AT59716	1	GUARD	FRONT BOTTOM, (SUB FOR AT33422)
8	19H2994	10	Cap Screw	HS, SAE 8, 5/8" X 1-1/2"
9	03H1936	4	BOLT	5/8" X 1-1/4", RD. HD.
10	T31994	1	SHIELD	REAR BOTTOM (USED WITH COUNTERWEIGHT)
11	19H1833	4	Cap Screw	5/8" X 1-1/4"
12	L139T	2	WASHER	-
13	19H1805	4	CAP SCREW	1/2" X 2-1/4", (USED WITHOUT COUNTERWEIGHT)
13	19H1805	2	CAP SCREW	1/2" X 2-1/4", (USED WITH COUNTERWEIGHT)
14	12H301	4	Lock Washer	1/2"

FRONT AND REAR BOTTOM GUARD (WITH OR WITHOUT DRAWBAR OR BOTTOM GUARD COUNTERWEIGHT) [02C19]
