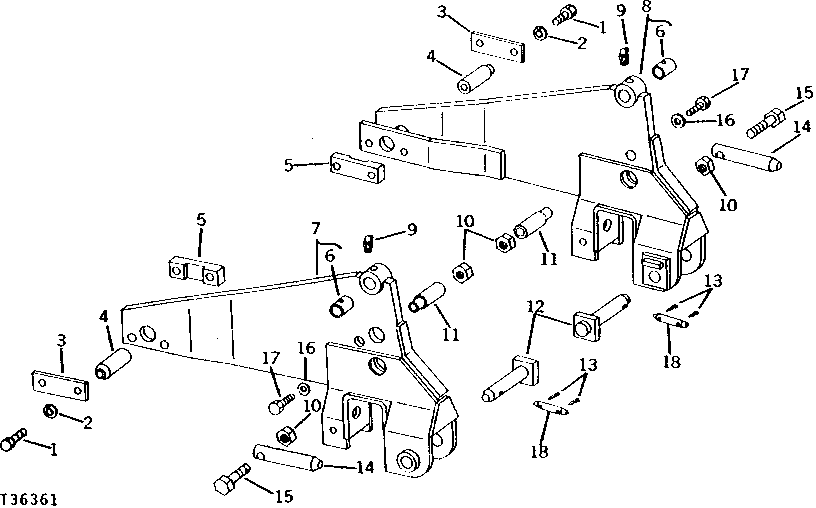

FRAMES (6300 AND 6305 BULLDOZER) [02K02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2725	4	Cap Screw	3/4" X 3-3/4"
2	12H236	4	Lock Washer	3/4"
3	U20039	2	STRAP	-
4	U13798	2	BUSHING	-
5	U11134	2	RETAINER	-
6	U10052	2	BUSHING	-
7	AU13824	1	FRAME	R.H. (WITH BUSHING) (REQUIRED FOR 6300 OR 6305 BULLDOZER ONLY)
7	AU40284	1	FRAME	R.H. (WITH BUSHING) (REQUIRED FOR 6305 BULLDOZER WITH BACKHOE, RIPPER, OR ROTOBOOM)
8	AU13825	1	FRAME	L.H. (WITH BUSHING) (REQUIRED FOR 6300 OR 6305 BULLDOZER ONLY)
8	AU40285	1	FRAME	L.H. (WITH BUSHING) (REQUIRED FOR 6305 BULLDOZER WITH BACKHOE, RIPPER, OR ROTOBOOM)
9	JD7763	2	Lubrication Fitting	GREASE, 1/8", 45°
10	U16721	4	Lock Nut	-
11	T18407	4	WASHER	(SUB FOR U16717) (ALSO ORDER (2) 28H2642 AND (2) 28H1600)
12	AU13822	1	PIN	-
12	AU13822	1	PIN	-
13	11M7059	2	Cotter Pin	3.200 X 20 MM
13	11H211	2	COTTER PIN	1/8" X 3/4"
14	U16720	2	PIN	-
15	19H3544	2	Cap Screw	1/2" X 4-1/2"
16	T18407	4	WASHER	-
16	28H1600	2	Spacer	(BETWEEN WASHER OF ROPS FRONT SUPPORT TO DOZER MOUNTING FRAME)
16	28H2642	2	Spacer	(BETWEEN ROPS FRONT SUPPORT AND DOZER MOUNTING FRAME)
17	19H2211	2	Cap Screw	1/2" X 5"
18	C11023	1	PIN FASTENER	-
18	C11023	1	PIN FASTENER	-

FRAMES (6300 AND 6305 BULLDOZER) [02K02]
