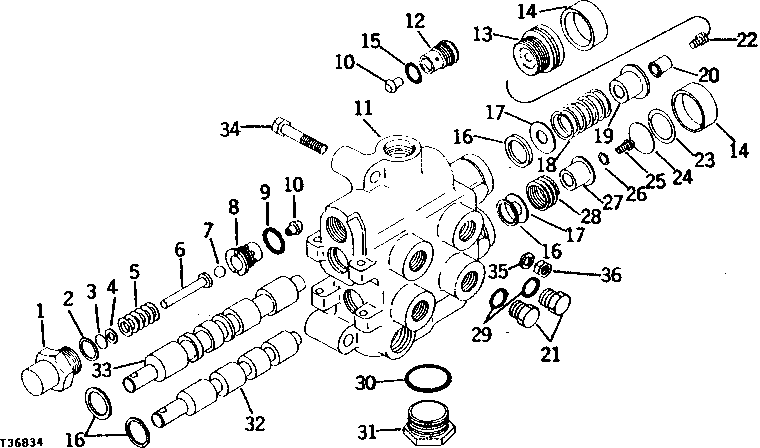

CONTROL VALVE (TWO-SPOOL) (6300 AND 6310 BULLDOZERS) [02K08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T34308	1	HOUSING	RELIEF VALVE
2	AT161281	1	SEAL	(SUB FOR T10654)
3	U10562	1	SOLID SHIM	-
4	T10649	1	WASHER	-
5	U15753	1	SPRING	-
6	U15752	1	GUIDE	-
7	H23836	1	Ball	(SUB FOR U13617)
8	U13614	1	VALVE SEAT	RELIEF VALVE
9	R26375	1	O-Ring	(SUB FOR T12047)
10	U13616	2	Pressure Relief Valve	(A)
11	-	1	Part 11	(SUB AT36524)
12	U13613	1	PLUG	(A)
13	AT30675	1	DETENT	SEGMENT
14	T10639	2	CAP	-
15	32246	1	O-Ring	(A) (SUB FOR T12048)
16	T28004	4	O-Ring	QUAD
17	T10642	2	WASHER	-
18	U13360	1	SPRING	-
19	T10645	1	ROUND RETAINER	-
20	T33722	1	PLUNGER	-
21	AU11752	2	Fitting	UNION (WITH OPTIONAL EQUIPMENT)
21	R27474	2	Drain Plug	-
22	T33723	1	BOLT	-
23	H35226	1	Snap Ring	(SUB FOR U11027)
24	T10632	1	CAP	END
25	21H1310	1	SCREW	1/4" X 1/2"
26	T10662	1	WASHER	-
27	W19896	1	LOCKING COLLAR	(SUB FOR T10631)
28	T10633	1	Spring	-
29	R26906	2	O-Ring	-
30	W16399	1	WASHER	-
31	T30693	1	FITTING PLUG	-
32	-	1	Part 33	(SUB AT36524)
33	-	1	Part 34	(SUB AT36524)
34	19H3031	3	Cap Screw	3/8" X 2-1/2"
35	12H304	3	Lock Washer	3/8"
36	14H812	3	NUT	3/8"
..	AT36524	1	CONTROL VALVE	(LESS MOUNTING HARDWARE)
..	AT55838	1	KIT	CHECK PLUG

CONTROL VALVE (TWO-SPOOL) (6300 AND 6310 BULLDOZERS) [02K08]
