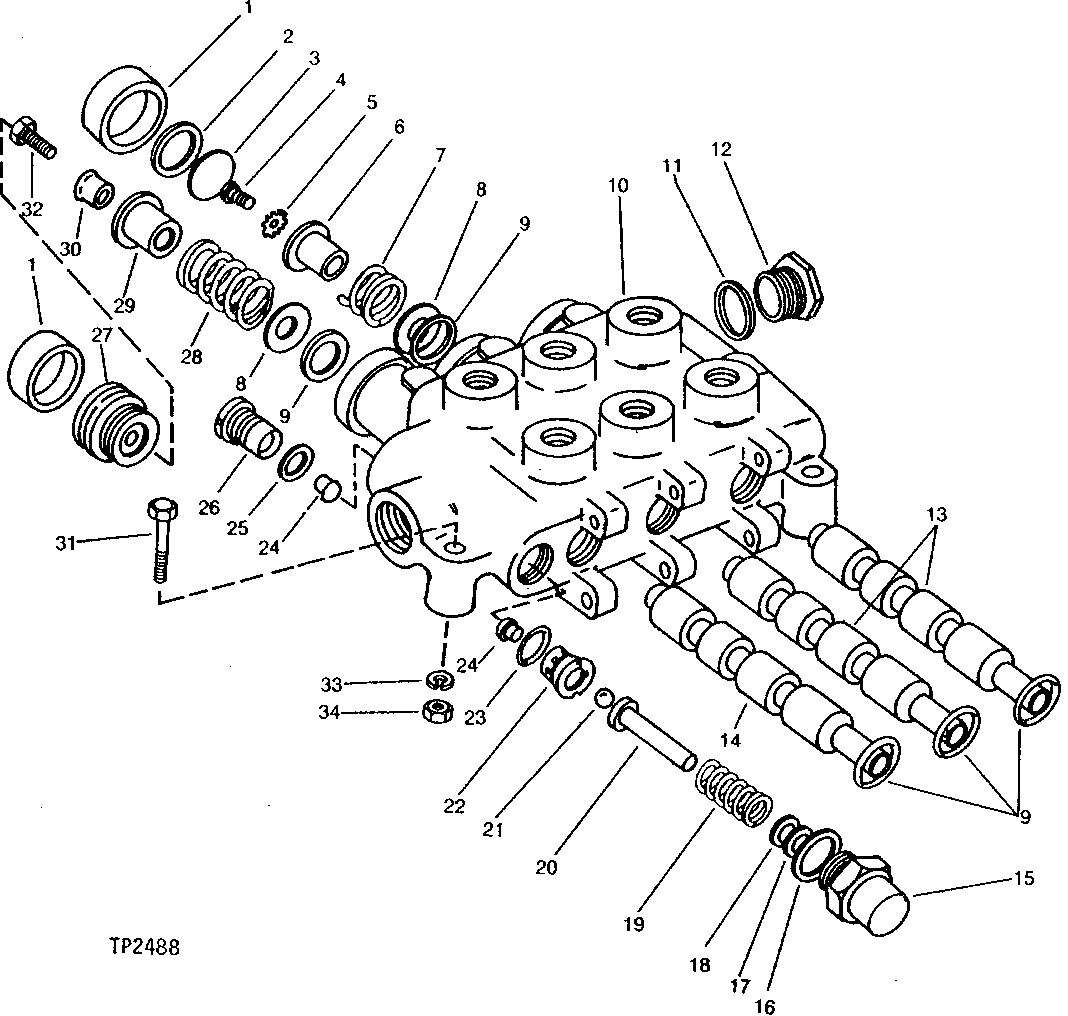

CONTROL VALVE (THREE-SPOOL) (6305 BULLDOZER) (SERIAL NO. -380196) [02K09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T10639	3	CAP	RUBBER
2	H35226	2	Snap Ring	(SUB FOR U11027)
3	T10632	2	CAP	STOP
4	21H1310	2	SCREW	1/4" X 1/2"
5	T10662	2	WASHER	-
6	W19896	2	LOCKING COLLAR	(SUB FOR T10631)
7	T10633	1	Spring	CENTERING, REGULAR, FOR TILT SPOOL
7	U12892	1	SPRING	CENTERING, REGULAR, FOR ANGLING SPOOL
8	T10642	3	WASHER	-
9	T28004	6	O-Ring	QUAD
10	-	1	Part 11	(SUB AT71452)
11	W16399	1	WASHER	-
12	T30693	1	FITTING PLUG	-
13	-	1	Part 14	(SUB AT36527)
14	-	1	Part 15	(SUB AT36527)
15	T34308	1	HOUSING	RELIEF VALVE
16	AT161281	1	SEAL	(SUB FOR T10654)
17	U10562	1	SOLID SHIM	-
18	T10649	3	WASHER	-
19	U15753	1	SPRING	-
20	U15752	1	GUIDE	-
21	H23836	1	Ball	(SUB FOR U13617)
22	U14253	1	VALVE SEAT	-
23	R26375	1	O-Ring	(SUB FOR T12047)
24	U13616	2	Pressure Relief Valve	(A)
25	32246	1	O-Ring	(A) (SUB FOR T12048)
26	U13613	1	PLUG	(A)
27	AT30675	1	DETENT	SEGMENT
28	U13360	1	SPRING	-
29	T10645	1	ROUND RETAINER	FLOAT SPRING
30	T33722	1	PLUNGER	PLUNGER
31	19H3031	3	Cap Screw	3/8" X 2-1/2"
32	T33723	1	BOLT	-
33	12H304	3	Lock Washer	3/8"
34	14H812	3	NUT	3/8"
..	AT71452	1	SPOOL VALVE	(LESS MOUNTING PARTS) (SUB FOR AT36527)
..	AT55838	1	KIT	CHECK PLUG

CONTROL VALVE (THREE-SPOOL) (6305 BULLDOZER) (SERIAL NO. -380196) [02K09]
