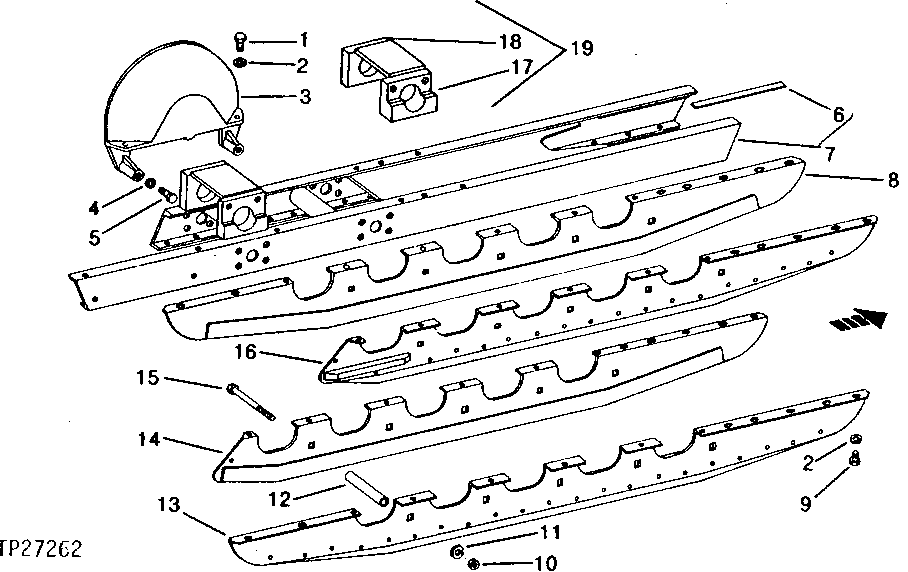

BULLDOZER TRACK FRAMES, ROCK GUARDS AND SPROCKET SHIELDS (SERIAL NO. -716749) [01B02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3579	2	Cap Screw	1/2" X 1-3/8"
2	12H301	2	Lock Washer	1/2"
3	T20755	1	SHIELD	SPROCKET
4	12H304	2	Lock Washer	3/8"
5	19H3239	2	Cap Screw	3/8" X 1-1/4"
6	-	4	Part 6	(SUB (2) T126064) (SUB FOR AT18850 AND AT133230) WEAR
7	AT45063	1	FRAME	R.H. TRACK WITH BRACKET
7	AT45065	1	FRAME	L.H. TRACK WITH BRACKET, (INCLUDES T126064) (WEAR STRIP)
8	AT18875	1	GUARD	OUTER LEFT ROCK
9	19H2643	48	Cap Screw	1/2" X 7/8"
10	14H1039	10	Nut	5/8"
11	12H294	10	Lock Washer	5/8"
12	28H1728	10	Bushing	3/4" X 6-15/16"
13	AT18873	1	GUARD	OUTER RIGHT ROCK
14	AT18872	1	GUARD	INNER RIGHT ROCK
15	03H2083	10	BOLT	5/8" X 8-1/4"
16	AT18874	1	GUARD	INNER LEFT ROCK
17	AT52177	1	BRACKET	(RIGHT)
18	AT52178	1	BRACKET	(LEFT)
19	-	2	Part 20	(AT52176 NO LONGER AVAILABLE) (SUB AT52177 AND AT52178) ((1) LEFT AND (1) RIGHT BRACKET FOR EACH SIDE) (REPLACEMENT)

BULLDOZER TRACK FRAMES, ROCK GUARDS AND SPROCKET SHIELDS (SERIAL NO. -716749) [01B02]
