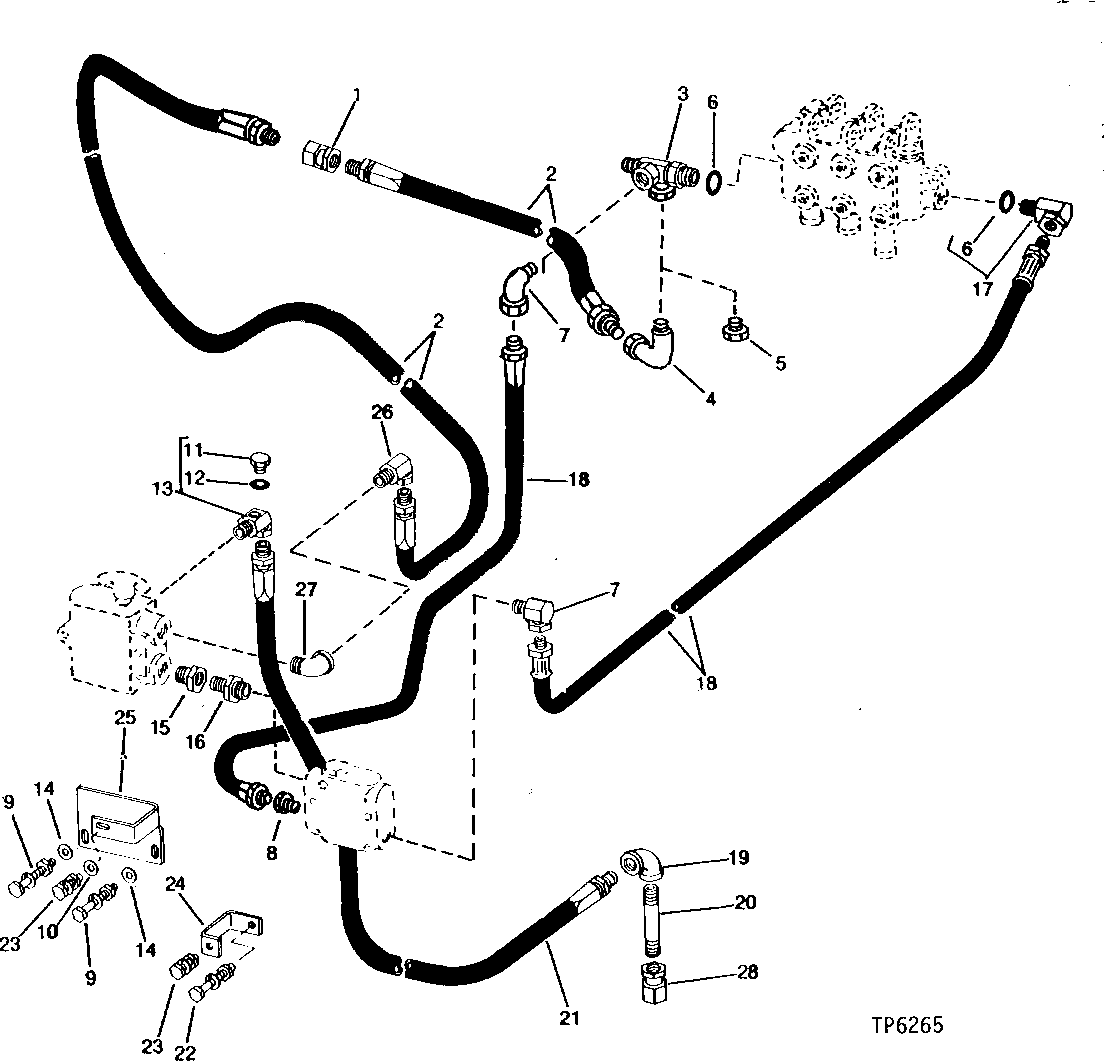

BULLDOZER CONTROL VALVE TO SELECTOR VALVE (USE WITH SPIN-ON FILTER INSTALLATION) (SERIAL NO. 354080-389785) [02F11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD149	1	ADAPTER	(F) UNION, STRAIGHT, 3/4" (WITHOUT QUICK-CONNECT COUPLERS)
2	AU11775	2	HYDRAULIC HOSE - FABRICATE	(F) 3/4" X 50"
3	AT63428	1	FITTING	-
4	JD179	1	UNION FITTING	45°
5	U41120	1	PIPE PLUG	(USED WITHOUT BACKHOE)
6	U12547	2	O-Ring	-
7	JD172	2	TEE FITTING	(F) UNION, 90°
8	15H589	1	Pipe Bushing	(F) REDUCING, 3/4" X 1/2"
9	19H1907	2	Cap Screw	(F) 5/16" X 2-3/4"
9	12H303	2	Lock Washer	(F) 5/16"
9	14H785	2	Nut	(F) 5/16"
10	24H1305	1	Washer	13/32" X 13/16" X 0.065"
11	R27216	1	DRAIN PLUG	-
12	R26287	1	O-Ring	-
13	AT56662	1	UNION FITTING	-
14	24H1307	1	Washer	13/32" X 1" X 1/16"
15	JD140	1	ADAPTER FITTING	(F) UNION, STRAIGHT, 3/4"
16	U13193	1	ADAPTER	UNION, STRAIGHT, 3/4"
17	AU40690	1	ELBOW FITTING	(F) UNION, 90°
18	AU40027	2	HYDRAULIC HOSE - FABRICATE	(F) 1/2" X 14"
19	U11277	1	ELBOW FITTING	-
20	-	1	Part 22	( 29H745, NO LONGER AVAILABLE) 3/4" X 4-1/2"
21	AU11745	1	HYDRAULIC HOSE - FABRICATE	(F) 711 MM LONG, 3/4" X 28", (SUB FOR AU11920, THIS APPLICATION)
22	19H3132	1	Cap Screw	5/16" X 2-1/4"
22	12H303	1	Lock Washer	(F) 5/16"
22	14H785	1	Nut	(F) 5/16"
23	19H2676	2	Cap Screw	(F) 3/8" X 1"
23	14H812	2	NUT	(F) 3/8"
23	12H304	2	Lock Washer	(F) 3/8"
24	U40073	1	BRACKET	-
25	U40075	1	BRACKET	(F)
26	AP23222	1	ELBOW FITTING	(F) UNION, 90°, 3/4"
27	U30411	1	ELBOW FITTING	STRAIGHT, 90°, 3/4"
28	JD149	1	ADAPTER	(F) STRAIGHT, 3/4"
..	-	1	Part 35	( AT63411 - NO LONGER AVAILABLE)

BULLDOZER CONTROL VALVE TO SELECTOR VALVE (USE WITH SPIN-ON FILTER INSTALLATION) (SERIAL NO. 354080-389785) [02F11]
