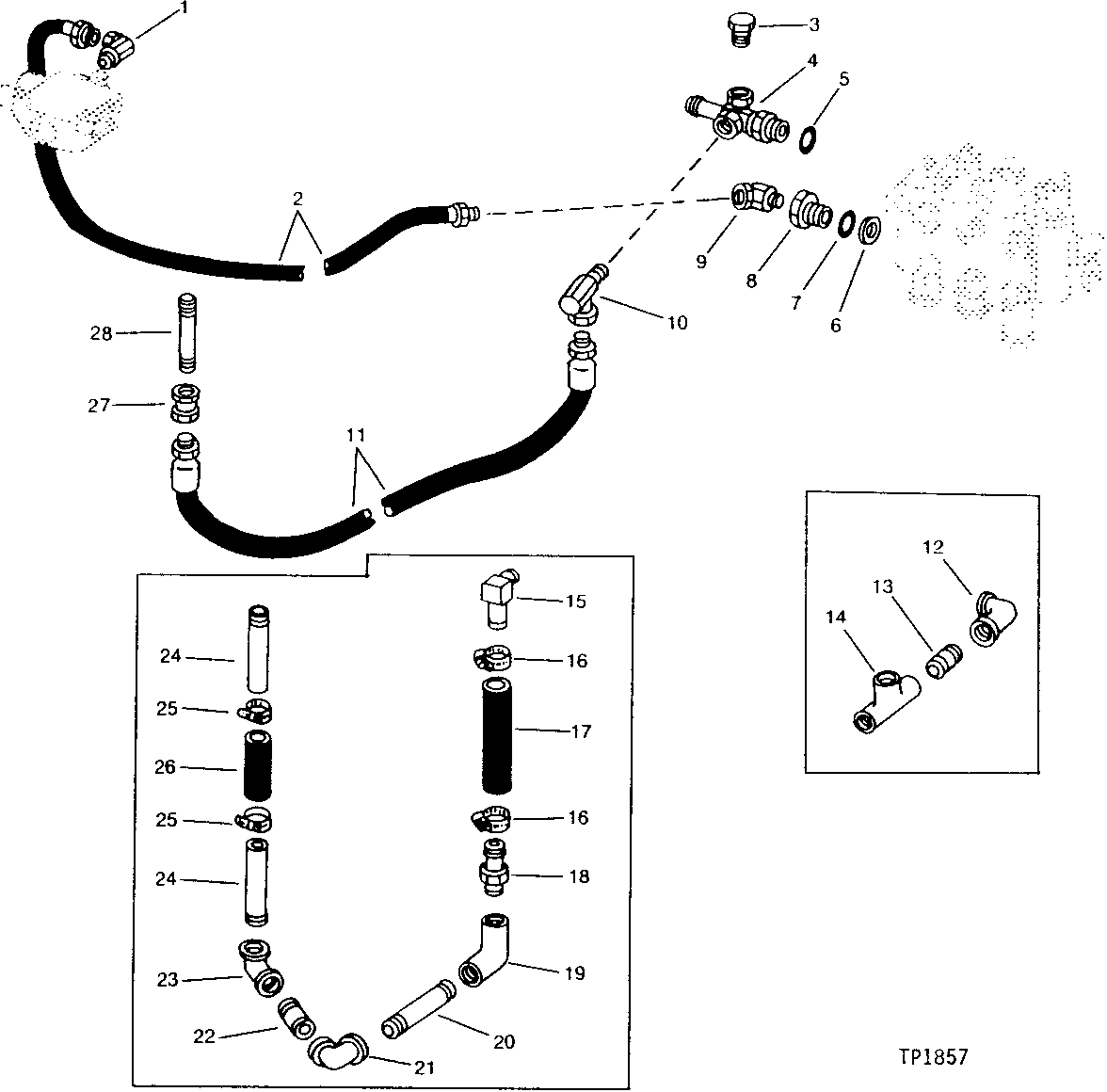

BULLDOZER CONTROL VALVE TO AUXILIARY VALVE HYDRAULICS (6305 BULLDOZER) [02F07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U10079	1	ELBOW FITTING	90°, 3/4" X 1/2"
2	TY3028	1	HYDRAULIC HOSE	1/2" X 17", (SUB FOR AU11880)
3	U40979	1	PIPE PLUG	-
4	AH14299	1	ELBOW FITTING	90°
4	AT63428	1	FITTING	-
4	R52683	1	Fitting	(USE WITH 15 GPM PUMP WITHOUT AUXILIARY VALVE) (SUB FOR R39215, THIS APPLICATION)
5	R26906	1	O-Ring	-
5	U12547	1	O-Ring	-
6	U30255	1	O-RING	POWER BEYOND
7	W16399	1	WASHER	POWER BEYOND
8	W16398	1	FITTING	POWER BEYOND
9	U11273	1	ELBOW FITTING	45°, 3/4"
10	U10079	2	ELBOW FITTING	SWIVEL, 90°
11	AU40027	1	HYDRAULIC HOSE - FABRICATE	355 MM LONG (1/2" X 14")
12	15H617	1	ELBOW FITTING	90°, 1" X 3/4"
13	29H729	1	THREADED NIPPLE	3/4" X 1-1/2"
14	15H599	1	Tee Fitting	3/4"
15	T37795	1	HOSE FITTING	90°
16	AR21839	2	Clamp	-
17	-	1	Part 20	25 MM X 152 MM (1" X 6") (MAKE FROM U11186) (SUB FOR T37798)
18	T37796	1	Hose Fitting	-
19	15H592	1	Elbow Fitting	90°, 3/4"
20	29H603	1	THREADED NIPPLE	3/4" X 3-1/2"
21	15H592	1	Elbow Fitting	90°, 3/4"
22	29H658	1	Threaded Nipple	3/4" X 2"
23	15H628	1	ELBOW FITTING	45°, 3/4"
24	29H697	2	THREADED NIPPLE	3/4" X 3-1/2"
25	AR21999	2	Hose Clamp	(SUB FOR AR48499 AND AR21840)
26	U20071	1	HYDRAULIC HOSE	25 MM X 76 MM (1" X 3")
27	15H606	2	COUPLING	90°
28	29H603	1	THREADED NIPPLE	3/4" X 3-1/2"

BULLDOZER CONTROL VALVE TO AUXILIARY VALVE HYDRAULICS (6305 BULLDOZER) [02F07]

Нет текстового описания
