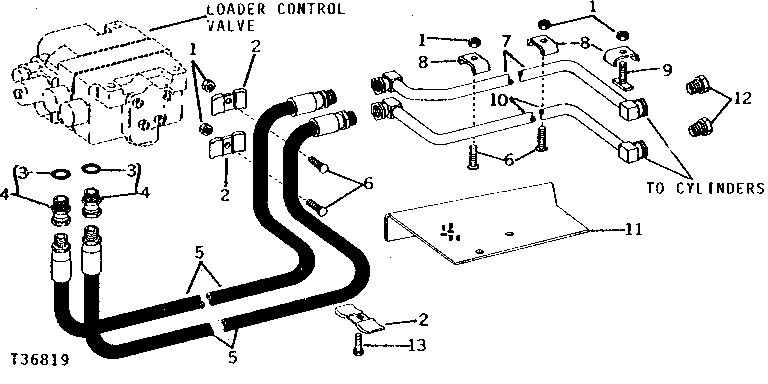

BOOM TUBES AND FITTINGS (LOADER CONTROL VALVE TO MULTI-PURPOSE BUCKET OR 7702 LOG LOAD ER) [02J03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H143332	4	Lock Nut	(SUB FOR T32688)
1	H143332	5	Lock Nut	(SUB FOR T32688)
2	U13055	3	CLAMP	TUBE
2	U13055	2	CLAMP	-
3	U12547	2	O-Ring	-
4	AU40260	2	ADAPTER	UNION, STRAIGHT, 1-1/16" X 1-1/2"
5	AT32146	2	HYDRAULIC HOSE - FABRICATE	1/2" X 2 667 MM (105") X 1/2"
6	U40407	4	STUD	WELD
7	AT32145	1	OIL LINE	BOOM, OUTER
8	U13051	2	CLAMP	-
8	U13051	3	CLAMP	-
9	AT32147	1	SUPPORT	TUBE
9	U41047	1	STUD	-
10	-	1	Part 14	BOOM INNER ( AT32144 NO LONGER AVAILABLE FOR SERVICE)
11	T32911	1	FENDER	LEFT (USED WITH MULTI-PURPOSE BUCKET OR 7702 LOG LOADER)
12	-	2	Part 16	(NO LONGER AVAILABLE) (WITHOUT MULTI-PURPOSE BUCKET OR 7702 LOG LOADER) (SUB FOR U40980)
13	19H3031	1	Cap Screw	3/8" X 2-1/2", (ATTACHED TO BOTTOM OF BATTERY BOX)
14	U10516	2	Hose Clamp	-
15	28H2481	1	Spacer	-
16	H129201	1	Lock Nut	(SUB FOR T32552)
..	-	1	Part 21	(AT35082 NO LONGER AVAILABLE)

BOOM TUBES AND FITTINGS (LOADER CONTROL VALVE TO MULTI-PURPOSE BUCKET OR 7702 LOG LOAD ER) [02J03]
