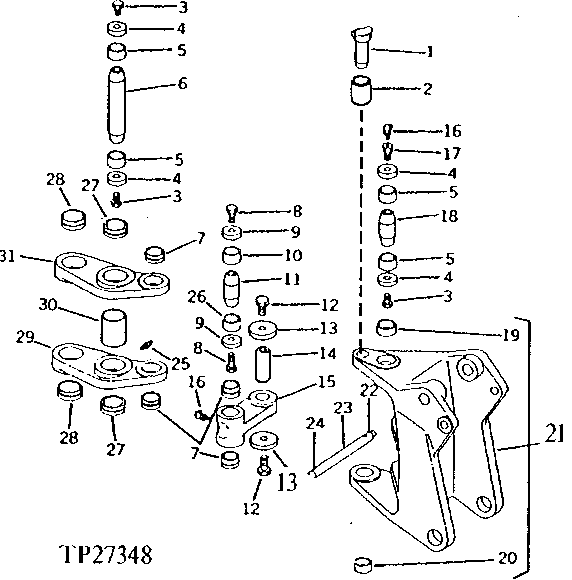

BOOM PIVOT AND SWING LINKAGE (9250 BACKHOE) [03B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AU42103	1	QUICK LOCK PIN	-
2	U43220	1	BUSHING	-
3	19H2717	4	Cap Screw	3/4" X 1-3/4", HS, SAE 8
4	U43180	6	SPACER	TAPERED PIN
5	U43179	6	TAPERED SLEEVE	-
6	U43184	1	PIN	(INNER SWING LINKS TO MAIN FRAME)
7	U43203	2	Bushing	(INNER AND OUTER SWING LINK)
8	19H2710	2	Cap Screw	5/8" X 1-3/4", HS, SAE 8
9	U43183	2	Washer	TAPERED PIN
10	U43177	1	TAPERED SLEEVE	-
11	U43209	1	PIN FASTENER	TAPERED (INNER LINKS TO OUTER LINK)
12	19H2472	2	Cap Screw	1/2" X 1", HS, SAE 8
13	U43645	2	WASHER	-
14	U43207	1	PIN FASTENER	OUTER SWING LINK
15	AU42102	1	LINK	OUTER SWING (INCLUDES U43207 (PIN, (2) U43203 BUSHINGS, AND JD7806 GREASE FITTING)
16	JD7806	2	Lubrication Fitting	90°
17	U43212	2	BOLT	-
18	U43208	2	PIN	TAPERED (SWING FRAME TO MAIN FRAME)
19	U40304	1	BUSHING	UPPER SWING FRAME
20	U40305	1	Bushing	LOWER SWING FRAME
21	AU42099	1	FRAME	-
22	11M7030	1	Cotter Pin	5 X 40 MM
23	U43218	1	PIN	ROOM LOCK
24	28316	1	Spring Locking Pin	(SUB FOR S2955DW, THIS APPLICATION)
25	JD7797	7	Lubrication Fitting	-
26	U43211	1	TAPERED SLEEVE	-
27	U43163	2	BUSHING	INNER SWING LINK
28	U43202	2	Bushing	INNER SWING LINK
29	AU42101	1	LINK	LOWER INNER SWING (INCLUDES U43163 BUSHING, U43202 BUSHING, U43203 BUSHING, AND (3) JD7797 GREASE FITTINGS)
30	U43213	1	SPACER	INNER SWING LINKS
31	AU42100	1	LINK	(INCLUDES U43163) UPPER INNER SWING (INCLUDES U43163 BUSHING, U43202 BUSHING, U43203 BUSHING, AND (3) JD7797 GREASE FITTINGS)

BOOM PIVOT AND SWING LINKAGE (9250 BACKHOE) [03B11]
