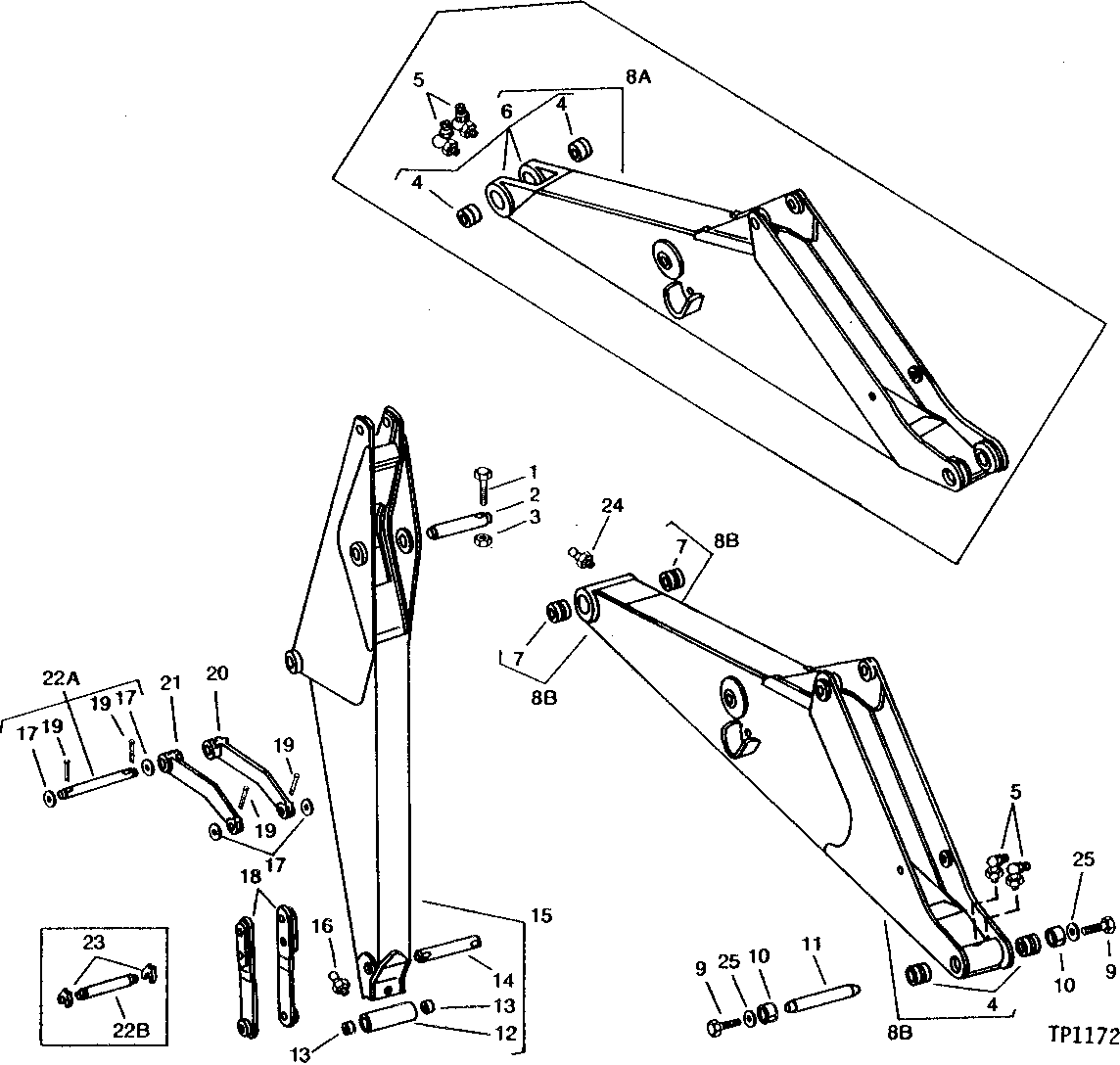

BOOM AND DIPPERSTICK (9550 BACKHOE) [03F16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2718	1	Cap Screw	5/8" X 4-3/4"
2	T44275	1	PIN FASTENER	BOOM TO DIPPERSTICK
3	U14555	1	Lock Nut	-
4	U43163	4	BUSHING	BOOM, (USE WITH AT52068)
4	U43163	2	BUSHING	(USE WITH AT65204)
5	JD7806	4	Lubrication Fitting	90°, (USE WITH AT52068)
5	JD7806	2	Lubrication Fitting	90°, (USE WITH AT65204)
6	-	1	Part 8	(USE WITH AT52068) ( AU42087 USE IF AVAILABLE)
7	T33933	2	Bushing	(USE WITH AT65204)
9	19H2717	2	Cap Screw	HS, SAE 8, 3/4" X 1-3/4"
10	U43179	2	TAPERED SLEEVE	-
11	U43184	1	PIN	-
12	T39153	1	BUSHING	-
13	U10666	2	BUSHING	DIPPERSTICK
14	U40108	1	PIN	-
15	-	1	Part 20	( AT81150 NO LONGER AVAILABLE)
15	AT59535	1	DIPPERSTICK	(SUB AT81150)
15	AT38676	1	DIPPERSTICK	(SUB AT81150)
16	JD7759	1	Lubrication Fitting	-
17	U11649	4	WASHER	-
17	U11649	4	WASHER	-
18	AU41933	2	LINK	BUCKET
19	11H221	4	COTTER PIN	3/8" X 2-1/2"
19	11H221	4	COTTER PIN	3/8" X 2-1/2"
20	T67896	1	LINK	(SUB FOR U16168) (ALSO ORDER T67895) R.H. GUIDE
21	T67895	1	LINK	(SUB FOR U16169) (ALSO ORDER T67896) L.H. GUIDE
23	T59452	2	SNAP RING	-
24	JD7759	1	Lubrication Fitting	(USE WITH AT65204)
25	U43180	2	SPACER	-
8A	AT52068	1	MAIN BOOM	(SUB AT65204)
8B	-	1	Part 11	( AT65204 NO LONGER AVAILABLE)
22A	AU13556	1	PIN FASTENER	LINKS TO BUCKET CYLINDER
22A	AU13556	1	PIN FASTENER	LINKS TO BUCKET CYLINDER
22B	T61038	1	PIN FASTENER	(SUB AU13556) LINKS TO BUCKET CYLINDER
