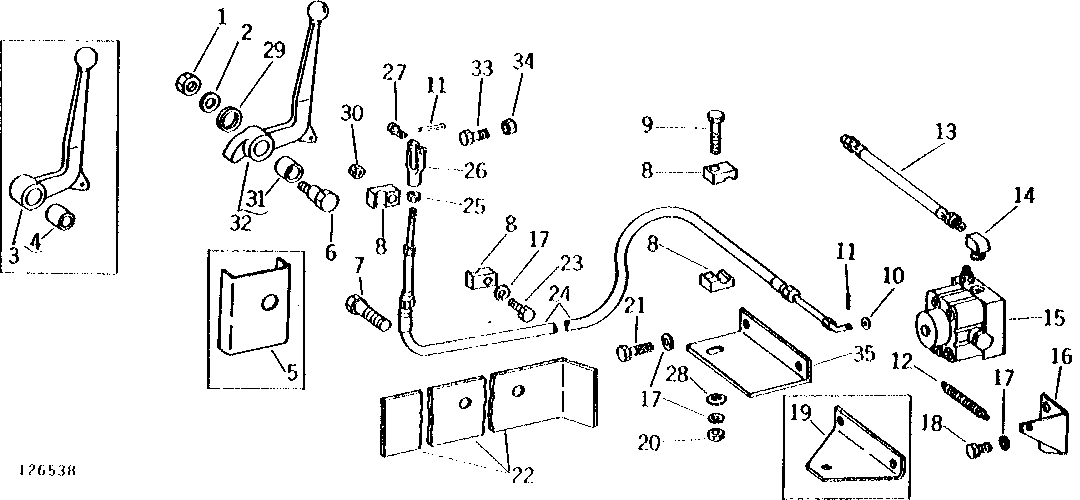

NO. 3315 POWER WINCH CONTROL LEVER AND VALVE [01F17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H865	1	Nut	1/2"
2	12H301	1	Lock Washer	1/2"
3	AT33826	1	LEVER	(MARKED T34702) (SUB AT36788 KIT)
4	M1640T	1	BUSHING	-
5	T19850	1	COVER	(SUB 24H448)
6	T19851	1	BOLT	-
7	19H2599	2	Cap Screw	5/8" X 2-1/2"
8	T33483	4	CLAMP	-
9	19H2541	1	CAP SCREW	3/8" X 1-3/4"
10	24H1283	1	Washer	7/32" X 1/2" X 0.049"
11	11M7082	2	Cotter Pin	2.500 X 25 MM, (USE WITH R662R)
11	11M7077	2	Cotter Pin	1.600 X 25 MM, (USE WITH L4667T)
12	T14307	1	SPRING	(B)
13	AT11828	1	HYDRAULIC HOSE - FABRICATE	6.3 MM X 178 MM (1/4" X 7") (FROM VALVE TO FILTER BASE)
14	T12293	1	FITTING	-
15	AT33825	1	CONTROL VALVE	(SUB AT43466)
15	AT36653	1	VALVE	(SUB AT43466)
15	AT43466	1	HYD ACTUATED CONTROL VALVE	(SUB FOR AT37444)
16	T34704	1	BRACKET	-
17	12H304	6	Lock Washer	3/8"
18	19H2038	1	Cap Screw	3/8" X 1/2"
19	-	1	Part 22	( T34703 NO LONGER AVAILABLE, SUB AT36788 KIT, THIS APPLICATION)
20	14H812	1	NUT	3/8"
21	19H3239	3	Cap Screw	3/8" X 1-1/4"
22	T34698	1	SHIELD	-
23	19H1765	1	Cap Screw	3/8" X 1-3/4"
24	AT12824	1	PUSH PULL CABLE	(SUB AT36788 KIT, THIS APPLICATION)
24	AT48916	1	PUSH PULL CABLE	(B) (SUB FOR AT36784)
25	14H860	1	Nut	1/4"
26	M3742T	1	Yoke	-
27	R662R	1	PIN FASTENER	-
27	L4667T	1	PIN FASTENER	(SUB R662R AND 11H234)
28	24H1305	1	Washer	13/32" X 13/16" X 0.065"
29	24H448	1	Washer	25/32" X 1-1/8" X 0.090"
30	14H812	1	NUT	3/8"
31	M1640T	1	BUSHING	(B)
32	AT36786	1	LEVER	(B) (SUB M1640T AND T38159)
33	19H2117	1	Cap Screw	(B) 5/16" X 1-1/8"
34	14H611	1	Nut	(B) 5/16"
35	T38158	1	BRACKET	(B)
..	AT36788	1	KIT	WINCH CONTROL LEVER
