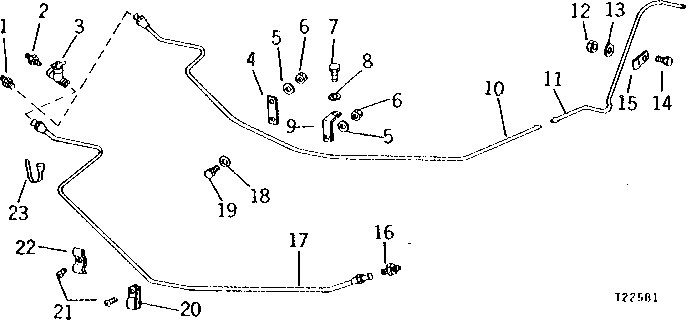

LEAK-OFF LINES AND REAR FUEL LINE [01D18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R35352	1	Fitting	(DIESEL)
2	29H17	1	Threaded Nipple	1/8" X 2"
3	AT124350	1	HAND OPERATED VALVE	(SUB FOR AT18853)
3	AT36766	1	HAND OPERATED VALVE	-
4	T21391	1	STRAP	-
5	12H246	2	LOCK WASHER	0.190"
6	14H778	2	Nut	0.190"
7	19H1648	1	Cap Screw	3/8" X 3/4"
8	12H304	1	Lock Washer	3/8"
9	T21012	1	ANGLE	-
10	AT31091	1	LINE	(DIESEL)
11	-	1	Part 12	(MAKE FROM T64421, 635 MM (25") PIECE) (SUB FOR T32029)
12	14H785	1	Nut	5/16", (DIESEL)
13	12H303	1	Lock Washer	5/16", (DIESEL)
14	19H2127	1	Cap Screw	5/16" X 7/8", (DIESEL)
15	T13814	1	Clamp	(DIESEL)
16	T20982	1	UNION FITTING	-
17	AT18637	1	FUEL LINE	REAR
17	AT36763	1	FUEL LINE	REAR
18	12H303	1	Lock Washer	5/16"
19	19H1813	1	CAP SCREW	5/16" X 5/8"
20	T21101	1	Clamp	-
20	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION)
21	21H1317	2	SCREW	0.190" X 5/8"
22	T21264	1	CLAMP	-
23	R44302	1	Tie Band	-

LEAK-OFF LINES AND REAR FUEL LINE [01D18]
