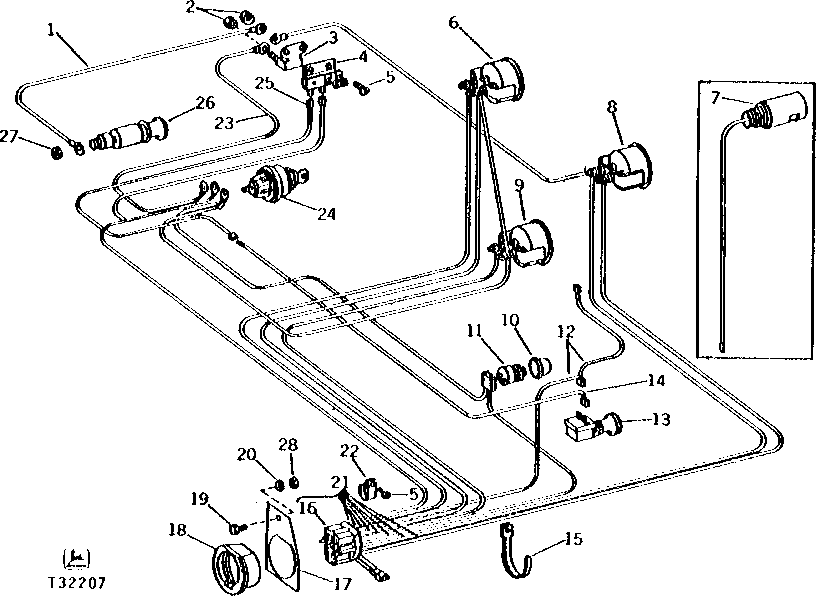

INSTRUMENTS AND INSTRUMENT PANEL WIRING SYSTEM [02A17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(MAKE FROM 177 MM (7") OF R66319 AND (2) R32018 FROM AR84006) (SUB AT26016)
2	14H631	2	Nut	0.190"
3	AR28403	1	CIRCUIT BREAKER	-
4	AA5791R	1	RESISTOR	(SUB FOR T23675) (ALSO ORDER (2) 57M7085) (GASOLINE)
5	37H47	2	SCREW	NO. 8 X 1/2"
6	-	1	Part 6	WATER TEMPERATURE (STEWART-WARNER) ( AT41010 USE IF AVAILABLE) (SUB AT149018) (SUB FOR AT28168)
6	-	1	Part 7	( AT61467 USE IF AVAILABLE) (SUB AT149018)
6	AT104755	1	TEMPERATURE GAUGE	(K) (VDO)
7	AR33479	1	LAMP	-
8	AT28166	1	AMMETER	(USE IF AVAILABLE)
8	AT41802	1	AMMETER	(SUB FOR AT28166)
8	AT41802	1	AMMETER	-
9	AT39728	1	GAUGE	-
10	T58440	1	CAP	(SUB FOR T31142)
11	AR47373	1	SWITCH	STARTER
12	AT30821	1	WIRING HARNESS	LIGHT SWITCH
13	AM31209	1	SWITCH	-
14	-	1	Part 20	(SUB PM797NA) LIGHT SWITCH TO IGNITION SWITCH
15	R44302	1	Tie Band	-
16	T25315	1	HOUSING	-
17	T24832	1	BRACKET	-
18	T24833	1	GROMMET	-
19	19H2117	1	Cap Screw	5/16" X 1-1/8", (USE WITH LOADER)
20	12H303	1	Lock Washer	5/16", (USED WITH LOADER)
21	AT33509	1	WIRING HARNESS	INST. PANEL
22	AT13846	1	CLAMP	-
23	-	1	Part 29	(MAKE FROM 177 MM (7") OF R66319 AND (2) R32018 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT33510)
24	AT25257	1	SWITCH	(SUB AT37390)
24	AT37390	1	SWITCH	IGNITION RESISTOR
25	-	1	Part 32	(GASOLINE) (MAKE FROM 408 MM (16") OF R65593, T28583, AND (2) U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT21891)
26	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR34556)
27	14H605	1	Nut	0.164"
28	14H785	1	Nut	5/16" (USED WITH LOADER)
9A	AT149014	1	KIT	(SUB FOR AT28167) OIL PRESSURE
9B	12H246	2	LOCK WASHER	0.190"
