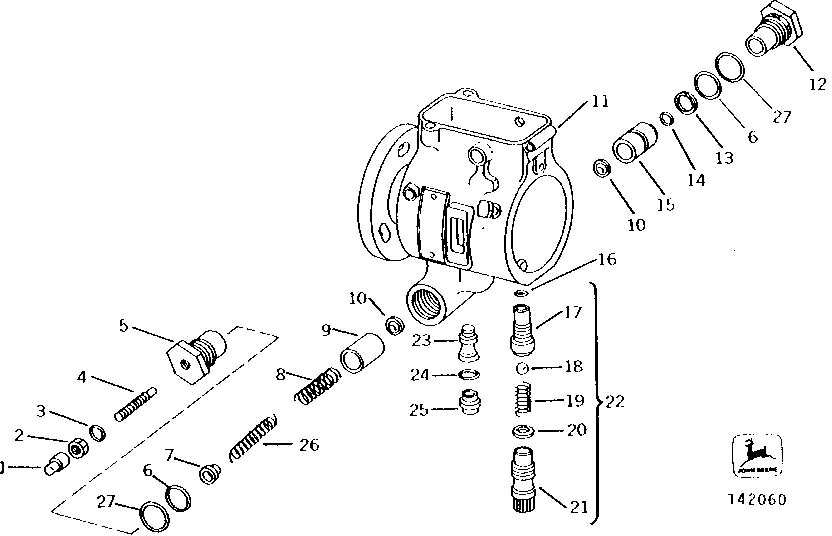

FUEL INJECTION PUMP AUTOMATIC ADVANCE GROUP (ROOSA-MASTER NO. JDB 331AL2405 OR JDB 331MD2797) [01D25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T17117	1	CAP	-
2	T17122	1	NUT	-
3	R76578	1	O-Ring	(B) (SUB FOR T11915)
4	T17123	1	SET SCREW	-
5	T17126	1	PLUG	-
6	T15710	2	O-RING	(B)
7	T17125	1	GUIDE	-
8	R49238	1	SPRING	(COLORED BLACK AND BROWN) (SUB FOR T24413)
9	R70315	1	PISTON	(SUB FOR T18529, THIS APPLICATION)
10	T15705	2	WASHER	-
11	AR67675	1	HOUSING	(SUB FOR AT21009) (DO NOT USE AR52690, THIS APPLICATION)
12	R74310	1	PLUG	(SUB FOR T15707 AND R49212, THIS APPLICATION)
13	R49211	1	WASHER	(SUB FOR R36651)
14	R34635	1	WASHER	(B)
15	R34824	1	PISTON	-
16	T11899	2	O-Ring	(B)
17	R48604	1	PLUG	(SUB AR51712)
18	T17137	1	BALL	(SUB AR51712)
19	R48601	1	SPRING	(SUB AR51712)
20	R48603	1	WASHER	(SUB AR51712)
21	R48602	1	SCREW	(SUB AR51712)
22	AR51712	1	SCREW	-
23	R36646	1	SCREW	-
24	T15712	1	O-Ring	(B)
25	R40707	1	PLUG	(SUB FOR T15711, THIS APPLICATION)
26	T24415	1	SPRING	(COLORED RED)
27	R56396	2	O-Ring	-
..	AR49899	1	FUEL INJECTION PUMP	-
..	AR34612	1	GASKET KIT	OVERHAUL GASKET, (SUB FOR AR51713)
