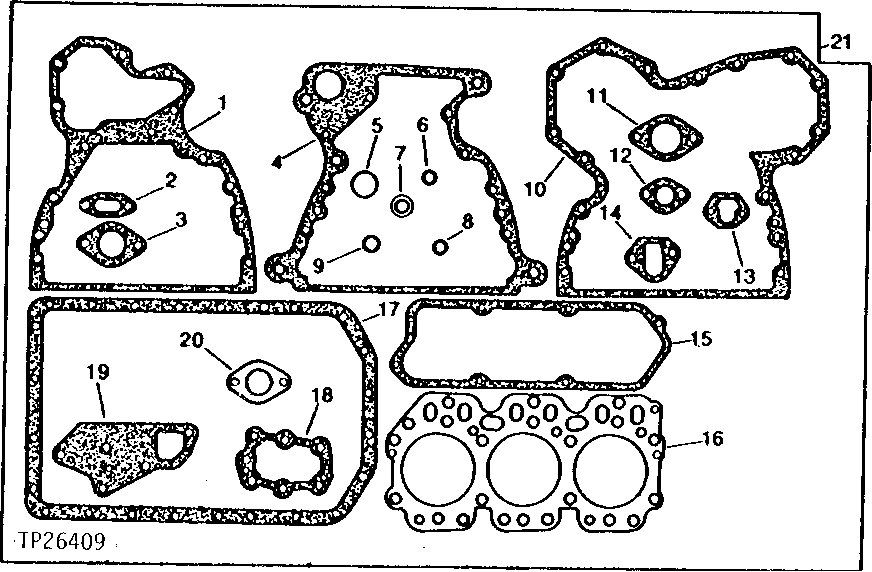

ENGINE OVERHAUL GASKET SET 164 CUBIC INCH ENGINE (2 687 CM3) (DIESEL) [02C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131794	1	Gasket	(SUB FOR R90648)
2	R97352	1	Gasket	OIL FILLER INLET, (SUB FOR T20336)
3	T20215	1	GASKET	THERMOSTAT COVER
4	R97351	1	Gasket	FLYWHEEL HOUSING, (SUB FOR R70483)
5	T20328	1	Gasket	OIL FILLER CAP
6	T20304	1	WASHER	TACHOMETER DRIVE SHAFT
7	T13213	1	WASHER	OIL DRAIN PLUG
8	R74354	1	O-Ring	OIL PUMP OUTLET TUBE
9	R56463	1	O-Ring	VENT TUBE OUTLET
10	R121314	1	Gasket	TIMING GEAR COVER, (SUB FOR T20155 OR R97454 OR R119269)
11	R81275	1	Gasket	AIR INLET, (SUB FOR T20159, THIS APPLICATION)
12	T20219	1	GASKET	THERMOSTAT HOUSING
13	R520618	1	Gasket	(SUB FOR R97350, R27285) FUEL PUMP
14	R69260	1	GASKET	INJECTION PUMP GEAR COVER
15	AR102261	1	GASKET	ROCKER ARM COVER
16	R80241	1	GASKET	(USE IF AVAILABLE) (SUB FOR R59447) CYLINDER HEAD
16	R97356	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R80241)
17	T24534	1	GASKET	OIL PAN
18	T20273	1	GASKET	TIMING GEAR COVER OPENING
19	T20243	1	Gasket	WATER PUMP COVER
20	R90658	3	Gasket	(SUB FOR T20006) EXHAUST MANIFOLD (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
21	RE501578	1	GASKET KIT	(SUB FOR RE38853) (ALSO ORDER (3) AR71617, (3) RE32011 AND (3) R48000)

ENGINE OVERHAUL GASKET SET 164 CUBIC INCH ENGINE (2 687 CM3) (DIESEL) [02C10]
