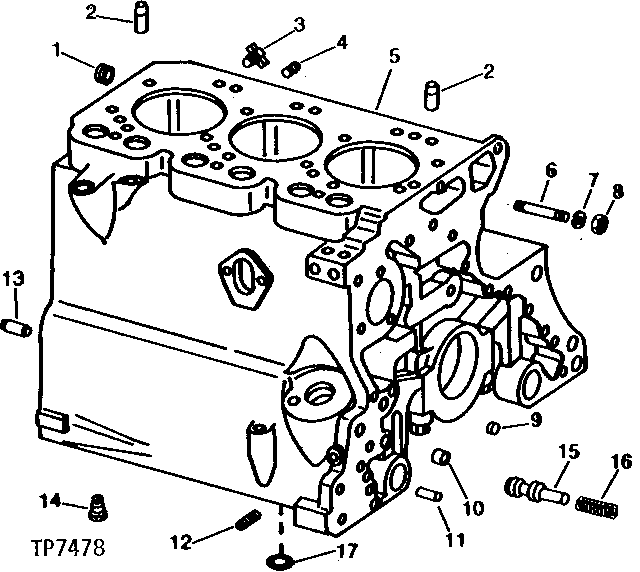

CYLINDER BLOCK 152 CUBIC INCH ENGINE (2 491 CM3) [01A17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H562	1	Pipe Plug	1"
1	15H690	1	Pipe Plug	3/4"
2	R48685	2	Dowel Pin	(SUB FOR R26241, THIS APPLICATION)
3	AT13740	1	Drain Valve	(USED WITHOUT ENGINE COOLANT HEATER)
3	15H613	1	ELBOW FITTING	90°
4	15H275	1	Pipe Plug	1/4", (WITHOUT ENGINE COOLANT HEATER)
4	15H613	1	ELBOW FITTING	90°
5	-	1	Part 8	WITH MAIN BEARING CAPS, OIL FILTER NIPPLE, SLEEVE, PIPE PLUGS, DOWEL PINS, STUDS, CAP SCREWS, WASHERS AND OIL PRESSURE RELIEF VALVE BUSHING, (DIESEL) ( AR97025 NO LONGER AVAILABLE FOR SERVICE) (MARKED R72967)
6	T25701	1	Stud	-
7	12H304	3	Lock Washer	3/8"
8	14H812	3	NUT	3/8"
9	T18891	1	Plug	-
10	R26493	1	Bushing	-
11	R26650	2	Dowel Pin	-
12	15H666	1	Pipe Plug	3/8"
13	R48685	2	Dowel Pin	(SUB FOR A120R)
14	R54802	3	Orifice	-
15	R73139	1	Flow Control Hyd. Valve	(USE WITH BLOCK MARKED R72967)
16	R46625	1	SPRING	(USE WITH BLOCK MARKED R72967)
17	R75892	1	O-Ring	(OIL PUMP TUBE) (USE AS REQUIRED)
..	RE19842	1	SHORT BLOCK ASSEMBLY	(MARKED R80408) WITH CYLINDER BLOCK ASSEMBLY CRANKSHAFT, CAMSHAFT, PISTONS, CONNECTING RODS, CYLINDER LINERS, FRONT PLATE, FRONT PLATE SET SCREWS, PIPE PLUG AND MISCELLANEOUS PARTS(DIESEL)
..	-	1	Part 22	(GASOLINE)(NO LONGER AVAILABLE)

CYLINDER BLOCK 152 CUBIC INCH ENGINE (2 491 CM3) [01A17]
