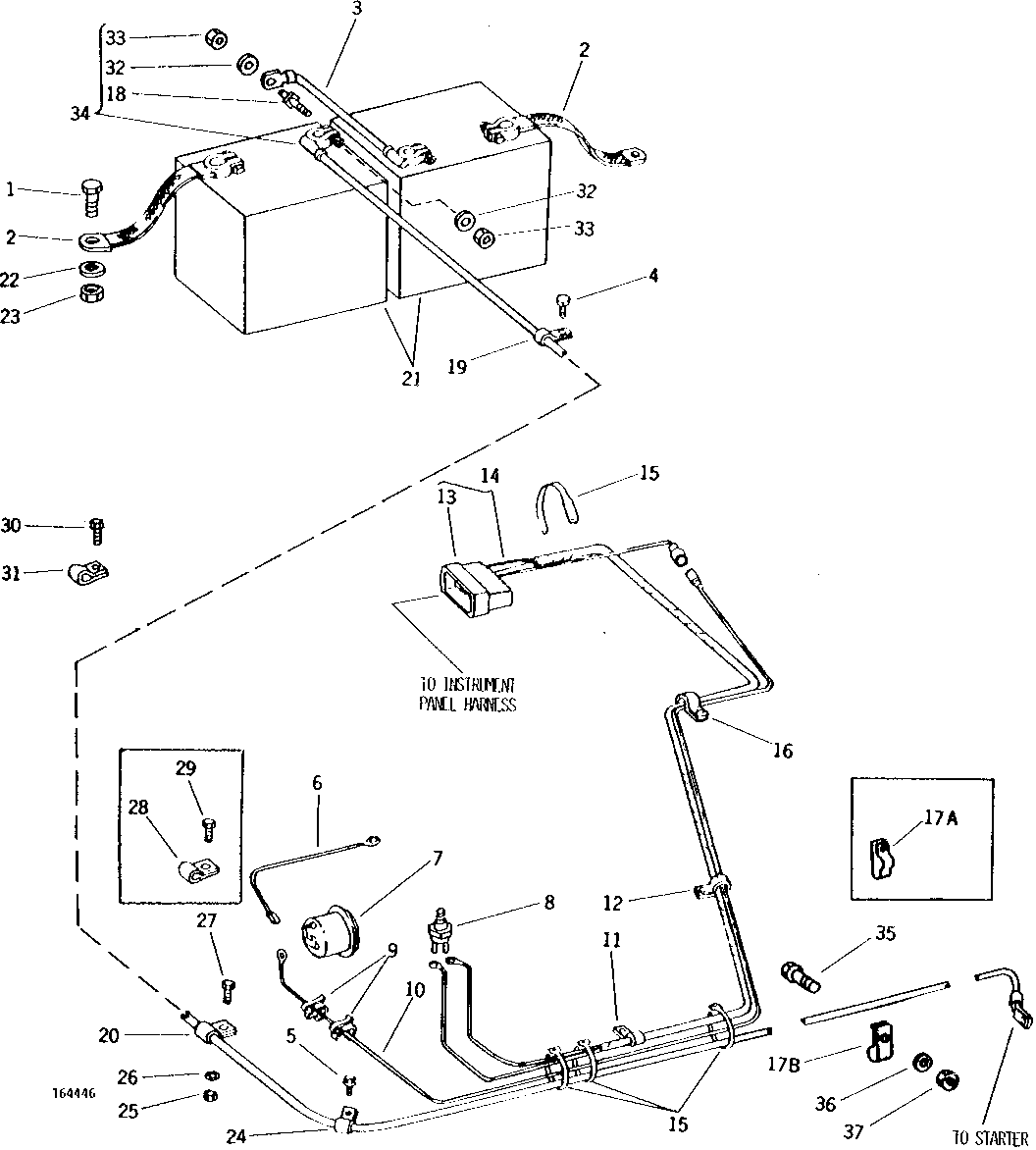

BATTERY CABLES AND HOUR METER WIRING HARNESS [02A20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03H1765	1	Bolt	3/8" X 3/4"
2	AT18702	1	GROUND CABLE	-
3	AT25403	1	CABLE	215.9 MM (8-1/2") LONG (USED WITH TWO BATTERIES) (SUB AT25420)
3	AT25420	1	BATTERY CABLE	215.9 MM (8-1/2") LONG (USED WITH TWO BATTERIES)
4	37H29	1	Screw	5/16" X 5/8"
5	37H29	1	Screw	5/16" X 5/8"
6	-	1	Part 7	(MAKE FROM 152 MM (6") OF R66319 AND R32018, T28583, AND U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18715)
7	AT160120	1	HOUR METER	(SUB FOR AT61458) (SUB FOR AT30152, THIS APPLICATION)
8	AT18988	1	SWITCH	SAFETY STARTER
9	T41072	2	CLIP	(SUB FOR M644T, THIS APPLICATION)
10	-	1	Part 11	(USE WITHOUT A LOADER) (MAKE FROM 1 930 MM (76") OF R65593, R65597, T28583, T28585, U46662, AND (2) R65604 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18984)
11	T12250	1	CLIP	-
12	T13913	1	Clip	-
13	T21203	1	TERMINAL	-
14	AT18705	1	WIRING HARNESS	HOUR METER AND SAFETY STARTER SWITCH
15	R44302	4	Tie Band	-
16	T13814	1	Clamp	-
18	T31161	1	Stud	-
19	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION)
19	T21101	2	Clamp	-
20	T13073	1	Clip	-
20	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION)
21	AT29159	1	DRY CHARGED BATTERY	12-VOLT, 475 COLD CRANKING AMPS AT -17.8°C (10°F), 150-MINUTE RESERVE CAPACITY AT 25 AMPS
21	AT29160	1	DRY CHARGED BATTERY	12 VOLT, 570 COLD CRANKING AMPS AT -17.8°C (0°F), 180-MINUTE RESERVE CAPACITY AT 25 AMPS
22	24H1302	1	Washer	13/32" X 11/16" X 0.035"
23	14H812	1	NUT	3/8"
24	T21101	1	Clamp	-
25	14H812	1	NUT	3/8"
26	12H304	1	Lock Washer	3/8"
27	19H2676	1	Cap Screw	3/8" X 1"
28	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION)
29	37H29	1	Screw	5/16" X 5/8"
30	19H1813	1	CAP SCREW	5/16" X 5/8", (TO BATTERY BOX)
31	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION) (TO BATTERY BOX)
32	12H303	2	Lock Washer	5/16"
33	14H785	2	Nut	5/16"
34	AT18703	1	BATTERY CABLE	92" LONG
34	AT36685	1	CABLE	82" LONG
35	19H1948	1	Cap Screw	1/4" X 3/4"
36	12H302	1	Lock Washer	1/4"
37	14H786	1	Nut	1/4"
17A	T20985	1	CLIP	-
17B	R46415	1	CLAMP	-

BATTERY CABLES AND HOUR METER WIRING HARNESS [02A20]
