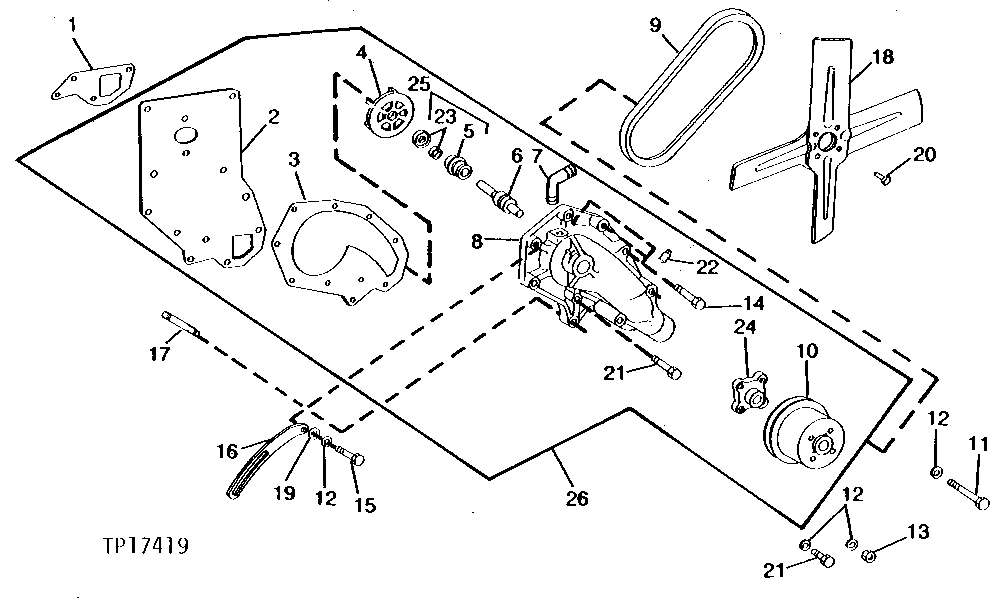

WATER PUMP ASSEMBLY (DIESEL) [01C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20243	1	Gasket	-
2	T28747	1	PLATE	(SUB FOR T20241)
3	T20242	1	GASKET	-
4	T20236	1	IMPELLER	(SUB T30897 AND AR101549)
4	T30897	1	Impeller	(SUB FOR T30897 OR R94419)
5	T27261	1	SEAL	(SUB FOR R36134) (SUB AR101549)
6	JD9257	1	Ball Bearing	-
7	T19653	1	Elbow Fitting	-
8	T29521	1	HOUSING	(SUB FOR T23630) (SUB RE19719)
9	T20161	1	V-BELT	(SUB T24757)
9	T24473	1	V-Belt	-
9	T24757	1	V-BELT	-
10	T23628	1	PULLEY	(SUB FOR T30721) (ALSO ORDER (4) 19H3467)
11	19H1912	2	Cap Screw	3/8" X 3-1/2"
12	12H304	4	Lock Washer	3/8"
13	14H812	1	NUT	3/8"
14	19H3385	3	Cap Screw	1/2" X 1-1/8"
15	19H1726	1	Cap Screw	3/8" X 2-1/4"
16	R108404	1	Strap	(SUB FOR T20204 AND R107734)
17	T25701	1	Stud	-
18	AT23180	1	FAN	(SUB FOR T23420) (SUCTION TYPE) (4 BLADE)
18	AT34613	1	Blower Fan	(SUB FOR T20795) (BLOWER TYPE) (SIX BLADE)
19	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
20	19H2127	4	Cap Screw	5/16" X 7/8"
20	19H2664	4	Cap Screw	5/16" X 3/4"
21	19H3065	2	Cap Screw	3/8" X 2"
22	15H584	1	Pipe Plug	1/2"
23	AR41691	1	SEAL KIT	-
24	T30720	1	HUB	(SUB FOR R62371) (USE WITH T30721, NOT REQUIRED WITH T23628)
25	AR101549	1	Seal Kit	-
26	AT26708	1	WATER PUMP	(MARKED T29521) (SUB FOR AT21204, AT27019 AND AT27596) (SUB RE25043) (ALSO ORDER R55760 AND (3) 19H2545 AS REQUIRED)
26	AT29620	1	Water Pump	(MARKED T29521) (SUB RE25043) (ALSO ORDER R55760 AND (3) 19H2545 AS REQUIRED)

WATER PUMP ASSEMBLY (DIESEL) [01C10]
