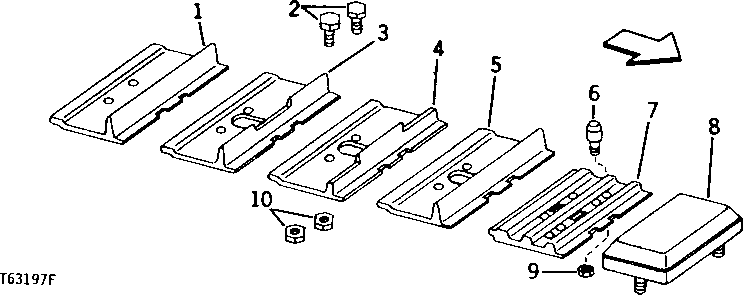

TRACK SHOES [02A15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T14613	1	SINGLE BAR SHOE	10" (36 PER TRACK) (5 ROLLER) (NO LONGER AVAILABLE)
1	T14613	1	SINGLE BAR SHOE	10" (32 PER TRACK) (4 ROLLER) (NO LONGER AVAILABLE)
1	T14615	1	SINGLE BAR SHOE	14" (36 PER TRACK) (5 ROLLER)
1	T14615	1	SINGLE BAR SHOE	14" (32 PER TRACK) (4 ROLLER)
1	T14621	1	SINGLE BAR SHOE	(SUB FOR T14622, T14619 AND T17085) 12" HARDENED (36 PER TRACK) (5 ROLLER)
1	T14621	1	SINGLE BAR SHOE	(SUB FOR T14622, T14619 AND T17085) 12" HARDENED (32 PER TRACK) (4 ROLLER)
1	T14614	1	SINGLE BAR SHOE	12" (36 PER TRACK) (5 ROLLER)
1	T14614	1	SINGLE BAR SHOE	12" (32 PER TRACK) (4 ROLLER)
2	T40535	1	BOLT	(1/2" X 1.56") (4 PER SHOE) (128 PER TRACK) (4 ROLLER) (USE IF AVAILABLE) (SUB FOR T14612)
2	T130032	1	BOLT	(1/2" X 1.65") (4 PER SHOE) (128 PER TRACK) (4 ROLLER) (SUB FOR T40535) (ALSO ORDER T129173)
2	T40535	1	BOLT	(1/2" X 1.56") (4 PER SHOE) (144 PER TRACK) (5 ROLLER) (SUB FOR T14612)
2	T130032	1	BOLT	(SUB FOR T40535) (ALSO ORDER T129173) (1/2"X 1.65") (4 PER SHOE) (144 PER TRACK) (5 ROLLER)
3	T14616	1	SINGLE BAR SHOE	SNOW, 12" CENTER NOTCH (16 PER TRACK) (4 ROLLER)
3	T14616	1	SINGLE BAR SHOE	SNOW, 12" CENTER NOTCH (18 PER TRACK) (5 ROLLER)
3	T14621	1	SINGLE BAR SHOE	(SUB FOR T14623) SNOW, 12" CENTER NOTCH, HARDENED (16 PER TRACK) (4 ROLLER)
3	T14621	1	SINGLE BAR SHOE	(SUB FOR T14623) SNOW, 12" CENTER NOTCH, HARDENED (18 PER TRACK) (5 ROLLER)
3	T14620	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) SNOW, 14" CENTER NOTCH (16 PER TRACK) (4 ROLLER)
3	T14620	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) SNOW, 14" CENTER NOTCH (18 PER TRACK) (5 ROLLER)
4	T14619	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) SNOW, 14" END NOTCH (18 PER TRACK) (5 ROLLER)
4	T14619	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) SNOW, 14" END NOTCH (16 PER TRACK) (4 ROLLER)
4	T14622	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) SNOW, 12" END NOTCH, HARDENED (16 PER TRACK) (4 ROLLER)
4	T14617	1	SINGLE BAR SHOE	SNOW, 12" END NOTCH (18 PER TRACK) (5 ROLLER)
4	T14617	1	SINGLE BAR SHOE	SNOW, 12" END NOTCH (16 PER TRACK) (4 ROLLER)
4	T14622	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) SNOW, 12" END NOTCH, HARDENED (18 PER TRACK) (5 ROLLER)
5	T17085	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) 12" HARDENED, OPEN CENTER (32 PER TRACK) (4 ROLLER)
5	T17085	1	SINGLE BAR SHOE	(USE IF AVAILABLE) (SUB T14621) 12" HARDENED, OPEN CENTER (36 PER TRACK) (5 ROLLER)
5	T17086	1	SINGLE BAR SHOE	14" HARDENED, OPEN CENTER (32 PER TRACK) (4 ROLLER)
5	T17086	1	SINGLE BAR SHOE	14" HARDENED, OPEN CENTER (36 PER TRACK) (5 ROLLER)
5	T19194	1	SINGLE BAR SHOE	33" HARDENED, OPEN CENTER (36 PER TRACK) (5 ROLLER)
6	M3950T	2	STUD	(FOR TRIPLE SEMI-GROUSER TYPE SHOE) (2 USED PER SHOE) (72 PER TRACK) (5 ROLLER)
7	T66947	1	OPEN CENTER 3 BAR SHOE	(A) TRIPLE SEMI-GROUSER, OPEN CENTER, 12" (36 PER TRACK) (5 ROLLER) (SUB FOR T14235)
7	T66948	1	OPEN CENTER 3 BAR SHOE	TRIPLE SEMI-GROUSER, OPEN CENTER, 14" (36 PER TRACK) (5 ROLLER) (BULLDOZER ONLY) (SUB FOR T24698)
7	T66947	1	OPEN CENTER 3 BAR SHOE	TRIPLE SEMI-GROUSER, OPEN CENTER, 12" (32 PER TRACK) (4 ROLLER) (SUB FOR T14235)
8	AT13110	1	STREET PAD	RUBBER, 10" (32 PER TRACK) (4 ROLLER)
8	AT13110	1	STREET PAD	RUBBER, 10" (36 PER TRACK) (5 ROLLER)
9	B30434	2	Lock Nut	(2 USED PER SHOE) (72 PER TRACK)(5 ROLLER) (SUB FOR M1665T)
10	T14913	1	NUT	(4 PER SHOE) (128 PER TRACK) (4 ROLLER) (USE IF AVAILABLE)
10	T129173	1	NUT	(SUB FOR T14913) (ALSO ORDER T130032) (4 PER SHOE) (144 PER TRACK) (5 ROLLER)
10	T14913	1	NUT	(4 PER SHOE) (144 PER TRACK) (5 ROLLER) (USE IF AVAILABLE)
10	T129173	1	NUT	(SUB FOR T14913) (ALSO ORDER T130032) (4 PER SHOE) (144 PER TRACK) (5 ROLLER)
..	AT64320	1	SHOE	305 MM (12") THREE BAR SEMI-GROUSER SHOE SET (CONTAINS 36 SHOES)
