REPLACEMENT TRACK ASSEMBLY (WITH HEADLESS MASTER PIN) [02A18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

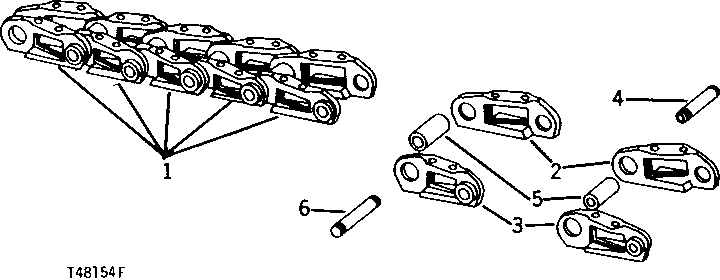

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT112966	1	TRACK CHAIN W/O SHOES	(36 LINKS) (5 ROLLER) (SUB FOR AT57211 AND AT113023) (ALSO ORDER (4) T112132, (2) T112150 AND T54529)
1	AT57214	1	LINK CHAIN	LESS SHOES (32 LINKS) (4 ROLLER)
2	T112147	1	NON-STRUTTED LINK-LH	(SUB FOR T19000) RIGHT (32 PER TRACK) (4 ROLLER)
2	T112147	1	NON-STRUTTED LINK-LH	(SUB FOR T19000) (36 PER TRACK) (5 ROLLER)
3	T112148	1	NON-STRUTTED LINK-RH	(SUB FOR T19001) LEFT (32 PER TRACK) (4 ROLLER)
3	T112148	1	NON-STRUTTED LINK-RH	(SUB FOR T19001) (36 PER TRACK) (5 ROLLER)
4	T54529	1	MASTER TRACK PIN	(A) (K)
5	T19562	1	BUSHING	(32 PER TRACK) (4 ROLLER)
5	T19562	1	BUSHING	(A) (36 PER TRACK) (5 ROLLER)
5	T19562	1	BUSHING	(K) (MASTER BUSHING) (SEALED TRACK CHAIN)
5	T112150	2	WASHER	(K) (WITH MASTER) (SEALED TRACK CHAIN)
5	T112149	1	BUSHING	(K) (36 PER TRACK CHAIN) (SEALED TRACK CHAIN)
6	T19563	1	TRACK PIN	(31 PER TRACK) (4 ROLLER)
6	T19563	1	TRACK PIN	(A) (35 PER TRACK) (5 ROLLER)
..	AT57199	1	RUBBER TRACK BELT	254 MM (10") RUBBER SHOES (36 SHOES) (5 ROLLER)
..	AT57207	1	RUBBER TRACK BELT	305 MM (12") GROUSER SHOES (36 SHOES) (5 ROLLER) (NO LONGER AVAILABLE)
..	AT57200	1	RUBBER TRACK BELT	305 MM (12") NOTCHED GROUSER SHOES (36 SHOES) (5 ROLLER) (NO LONGER AVAILABLE)
..	AT113056	1	TRACK ASSEMBLY WITH SHOES	305 MM (12") OPEN CENTER TRIPLE SEMI-GROUSER SHOES (36 HOSE) (5 ROLLER) (SUB FOR AT57209 AND AT113454) (ALSO ORDER T54529, (4) T112132 AND (2) T112150)
..	AT57201	1	RUBBER TRACK BELT	305 MM (12") HARDENED OPEN CENTER SHOES (36 SHOES) (5 ROLLER)
..	AT57210	1	RUBBER TRACK BELT	356 MM (14") GROUSER HARDENED SHOES (36 SHOES) (5 ROLLER)
..	AT57202	1	RUBBER TRACK BELT	356 MM (14") NOTCHED GROUSER SHOES (36 SHOES) (5 ROLLER) (NO LONGER AVAILABLE)
..	AT57204	1	RUBBER TRACK BELT	356 MM (14") HARDENED OPEN CENTER SHOES (36 SHOES) (5 ROLLER)
..	AT57205	1	RUBBER TRACK BELT	356 MM (14") OPEN CENTER TRIPLE SEMI-GROUSER SHOES (36 SHOES) (5 ROLLER)
..	-	1	Part 24	(NO LONGER AVAILABLE) (INCLUDES (36) T19562, (35) T19563 AND T54529) (SUB FOR AT56693) PIN AND BUSHING REPAIR
..	AT113024	1	PIN & BUSHING KIT	-

REPLACEMENT TRACK ASSEMBLY (WITH HEADLESS MASTER PIN) [02A18]
