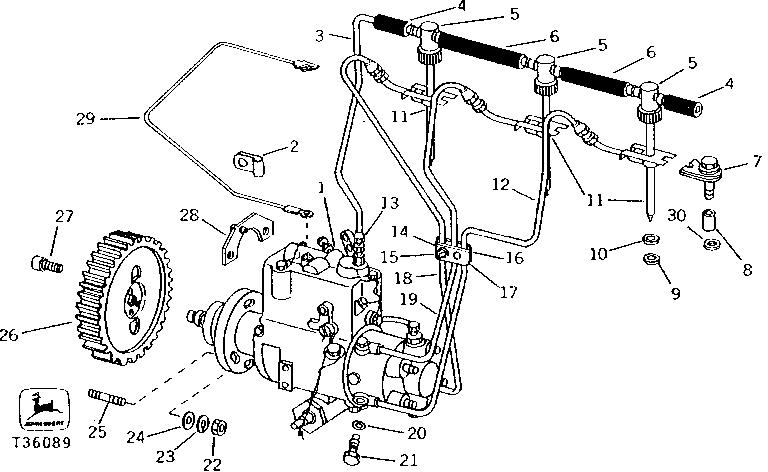

REPLACEMENT PARTS FOR FUEL INJECTION SYSTEM CONVERSION (SERIAL NO. 60524- ) [01D10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR69817	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. JDB331AL2732)
2	T29527	1	Clamp	-
3	AT27616	1	FUEL LINE	-
4	-	2	Part 4	(MAKE FROM R68281, 1 524 MM (5 FT.) HOSE) (SUB FOR AT32064)
5	AT27622	3	CAP	-
6	-	2	Part 6	(MAKE FROM R68281, 1 524 MM (5 FT.) HOSE) (SUB FOR AT32064)
7	R34760	3	CLAMP	(WITH SCREW AND WASHER)
8	R34761	3	SPACER	(K) (SUB RE32011)
9	R48000	3	Seal	(LOWER)
10	R60746	3	WASHER	(UPPER) (USE WITH AR73673 AND AR88239)
10	R34764	3	WASHER	(K) (UPPER) (USE WITH AR56290 AND AR89564) (SUB RE32011)
11	AR89564	3	INJECTION NOZZLE	(SUB FOR AR56290, AR73673 AND AR88239)
12	AT18111	1	FUEL LINE	(NO. 3)
13	R35352	1	Fitting	-
14	12H246	2	LOCK WASHER	0.190", (USE WITH T23460 AND T23461)
15	21H1317	2	SCREW	0.190" X 5/8", (USE WITH T23460 AND T23461)
15	AR76704	2	SCREW	(WITH WASHER)
16	R61145	1	Strap	-
16	R59297	1	Half Clamp	-
16	T23461	1	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
17	T23460	1	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
17	R59297	1	Half Clamp	-
17	R59298	1	Strap	-
18	AT18065	1	FUEL LINE	(NO. 1)
19	AT18099	1	FUEL LINE	(NO. 2)
20	T20055	6	WASHER	-
21	R26726	3	HOLLOW SCREW	-
22	14H812	2	NUT	3/8"
23	12H304	2	Lock Washer	3/8"
24	24M7096	2	Washer	0.413" X 0.709" X 0.063"
25	T23442	2	Stud	-
26	T24772	1	GEAR	(48 TEETH)
27	R58104	3	SCREW	-
28	AR69830	1	CLAMP	-
29	AR49907	1	WIRING LEAD	-
30	24H1685	4	Washer	11/32" X 47/64" X 0.083"

REPLACEMENT PARTS FOR FUEL INJECTION SYSTEM CONVERSION (SERIAL NO. 60524- ) [01D10]
