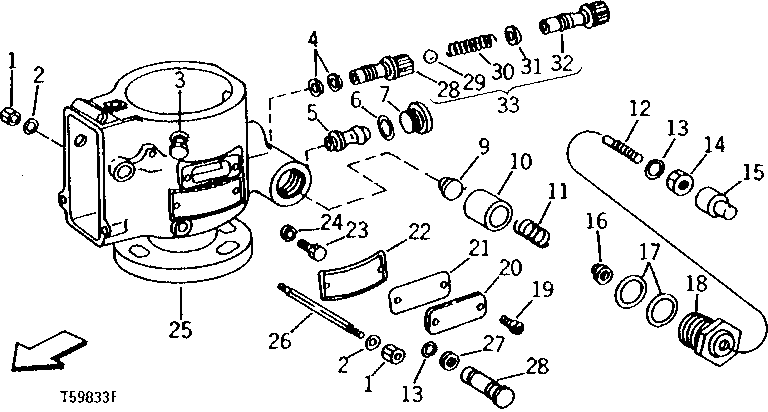

REPLACEMENT FUEL INJECTION PUMP ADVANCE PISTON ASSEMBLY (ROOSA-MASTER NO. DBGFC331-1AJ) (SERIAL NO. -60523) [01D22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11932	2	NUT	-
2	T11906	2	O-RING	(A)
3	R30714	2	BOLT	-
4	T11899	2	O-Ring	(A)
5	R36646	1	SCREW	-
6	T15712	1	O-Ring	(A)
7	R40707	1	PLUG	(SUB FOR T15711, THIS APPLICATION)
8	T17946	1	SHAFT	-
9	T15705	1	WASHER	-
10	R70315	1	PISTON	(SUB FOR T18529, THIS APPLICATION)
11	R49238	1	SPRING	(COLORED BLACK AND BROWN)
12	T17123	1	SET SCREW	-
13	R76578	2	O-Ring	(A)
14	T17122	1	NUT	-
15	T17117	1	CAP	-
16	T17125	1	GUIDE	-
17	T15710	2	O-RING	(A)
18	T17126	1	PLUG	-
19	T11884	2	SCREW	-
20	T11882	1	COVER	-
21	T11883	1	GASKET	(A)
22	T11875	1	IDENTIFICATION PLATE	-
22	T11876	2	SCREW	-
23	T11930	2	SCREW	-
24	T11878	2	WASHER	(A)
25	AR67675	1	HOUSING	-
26	T11925	1	SHAFT	-
27	T15720	1	WASHER	-
28	R48602	1	SCREW	(SUB AR51712)
29	T17137	1	BALL	(SUB AR51712)
30	R48601	1	SPRING	(SUB AR51712)
31	R48603	1	WASHER	(SUB AR51712)
32	R48604	1	PLUG	(SUB AR51712)
33	AR51712	1	SCREW	-
..	AR70139	1	FUEL PUMP	-
..	SE500565	1	FUEL INJECTION PUMP REMAN	-
..	AR34612	1	GASKET KIT	-

REPLACEMENT FUEL INJECTION PUMP ADVANCE PISTON ASSEMBLY (ROOSA-MASTER NO. DBGFC331-1AJ) (SERIAL NO. -60523) [01D22]
