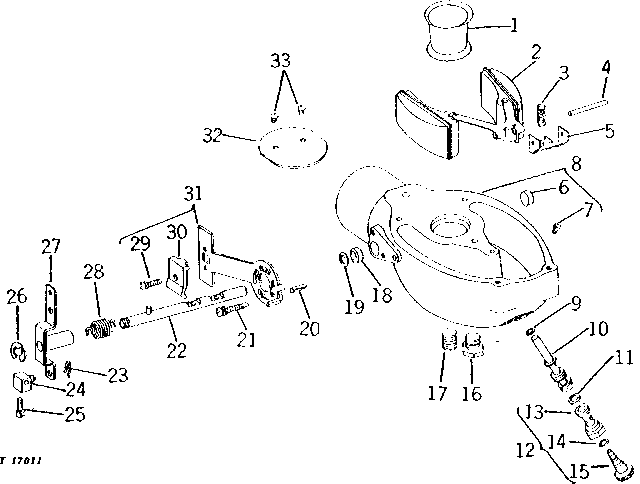

REPLACEMENT CARBURETOR BOWL ASSEMBLY (MARVEL-SCHEBLER NO. TSX-907) (SERIAL NO. 10001-15905 ) [01F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30892	1	VENTURI	(SUB FOR 46-A50)
2	30-739	1	FLOAT	-
3	T23532	1	SPRING	-
4	R10211	1	SHAFT	(A)
5	T23536	1	BRACKET	-
6	R10150	1	PLUG	-
7	15-409	1	PLUG	(NO LONGER AVAILABLE)
8	AT23001	1	HOUSING	(INCLUDES KEY NOS. 6, 7, AND 17)
9	GW46-16-456	1	GASKET	(A) ( 16-456 NO LONGER AVAILABLE)
10	47-455	1	NOZZLE	-
11	16-47	1	GASKET	(A)
12	AT21357	1	NEEDLE	-
13	T19979	1	NEEDLE	-
14	R27490	1	O-Ring	-
15	T16311	1	NEEDLE	-
16	R10160	1	PIPE PLUG	-
17	99-4	1	PIPE PLUG	1/8", HEADLESS
18	R10186	1	SEAL	(A)
19	R10187	1	SHIM	.63 MM (.025")
20	34H242	1	Spring Pin	1/8" X 7/16"
21	21H1315	2	Screw	0.164" X 3/4", (SUB FOR T23522, ALSO ORDER 12H379)
21	12H379	2	Lock Washer	0.164"
22	AT22990	1	SHAFT	-
23	R10185	1	Spring Locking Pin	-
24	R10184	1	SWIVEL	-
25	21H971	1	SCREW	0.164" X 5/16"
26	T23529	1	Snap Ring	-
27	-	1	Part 28	( AT22989 NO LONGER AVAILABLE)
28	R10183	1	TORSION SPRING	-
29	15A295	1	SCREW	-
30	R10188	1	CLIP	-
31	AR30435	1	BRACKET	-
32	T23524	1	CHOKE	-
33	B17696	2	SCREW	(A)
..	AT23005	1	CARBURETOR	(ALSO ORDER AT21357 NEEDLE AND SEAT AND 16-47 GASKET)
..	RE528308	1	KIT	( AR52589 NO LONGER AVAILABLE)

REPLACEMENT CARBURETOR BOWL ASSEMBLY (MARVEL-SCHEBLER NO. TSX-907) (SERIAL NO. 10001-15905 ) [01F03]
