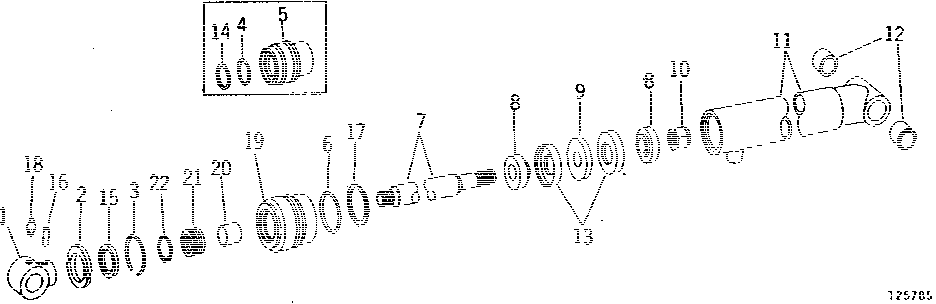

REMOTE CYLINDER ASSEMBLY (WHEN EQUIPPED WITH THREE-POINT HITCH) [01I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U10438	1	END	-
2	U10290	1	NUT	-
3	U10297	1	SNAP RING	-
4	R29463	1	O-Ring	(SUB FOR P47009) (WITHOUT ROD GUIDE)
5	U10307	1	MANIFOLD	(SUB AU41740)
6	F1870R	1	O-Ring	(SUB FOR U10293)
7	U10459	1	ROD	-
8	U10300	2	BUSHING	-
9	U10298	1	BUSHING	-
10	P45231	1	LOCK NUT	-
11	AT21660	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AT13485)
12	U10482	2	BUSHING	-
13	U10295	2	SEAL	-
14	U10064	1	BACK-UP RING	(WITHOUT ROD GUIDE)
15	L1937C	1	SEAL	-
16	22H978	1	Set Screw	3/8" X 5/16"
17	R81194	1	BACK-UP RING	(SUB FOR U13461, THIS APPLICATION)
18	JD7759	1	Lubrication Fitting	-
19	U42645	1	HYDR. CYLINDER ROD GUIDE	(A) (ALSO ORDER U41824) (SUB FOR AU41776)
20	U41824	1	WEAR RING	(A)
21	T37124	1	SEAL	(A) (WITH ROD GUIDE) (SUB FOR U41924)
22	N107859	1	Snap Ring	(A) (WITH ROD GUIDE) (SUB FOR J17817)
..	AT13479	1	CYLINDER	(D) (SUB AU43102)
..	AU41740	1	KIT	ROD, (SUB N107859, U41924, U41824 AND U42645)
