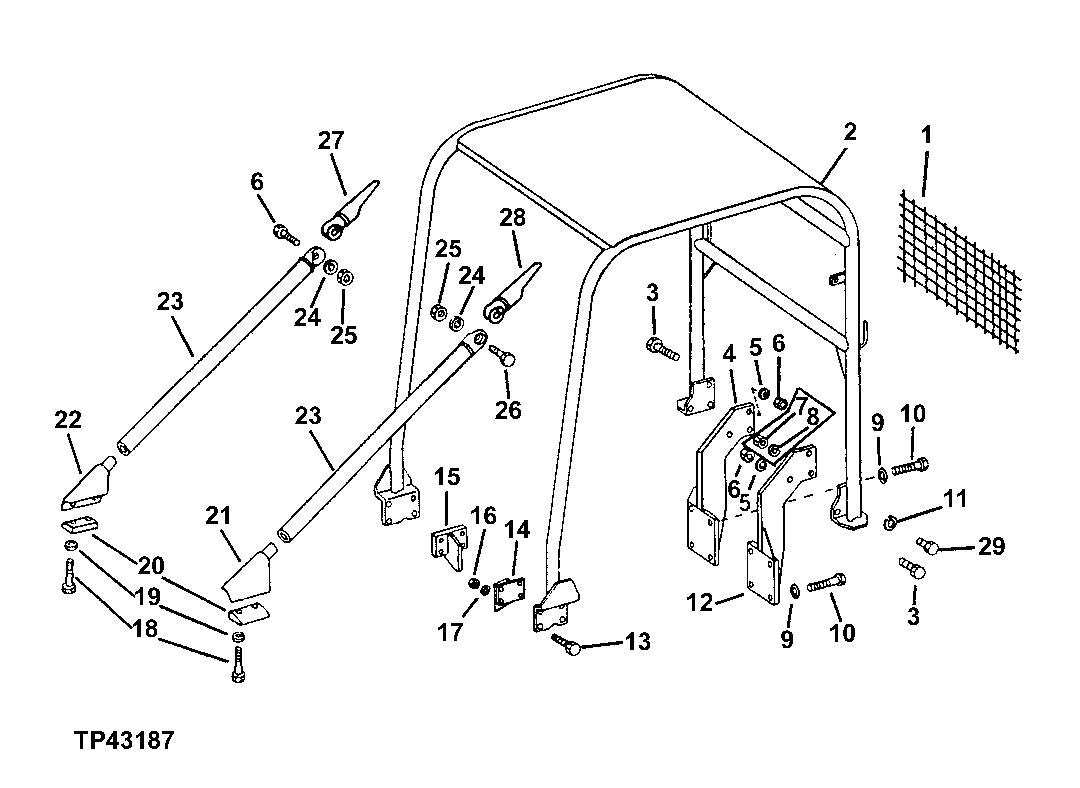

PROTECTIVE CANOPY (WHEN EQUIPPED WITH OUTSIDE DOZER, WITH OR WITHOUT WINCH AND WITHOUT COUNTERWEIGHT, RIPPER OR BACKHOE MOUNTING) [01J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T39029	1	SCREEN	(SUB FOR T23975)
2	-	1	Part 2	(SUB AT38934) (INCLUDES T106705 AND T43705) (SUB FOR AT19087 AND AT19305)
3	19H3244	5	Cap Screw	5/8" X 2-1/4"
4	AT19090	1	SUPPORT	REAR RIGHT
5	12H294	5	Lock Washer	5/8"
6	14H1039	5	Nut	5/8"
7	14H1039	1	Nut	5/8"
8	12H294	1	Lock Washer	5/8"
9	12H236	8	Lock Washer	3/4"
10	19H2411	8	Cap Screw	3/4" X 2-1/2"
11	12H294	1	Lock Washer	5/8"
12	AT19091	1	SUPPORT	REAR LEFT
13	19H3182	8	CAP SCREW	1/2" X 1-7/8"
14	AT19089	1	SUPPORT	FRONT LEFT
15	AT34147	1	SUPPORT	FRONT RIGHT, (SUB FOR AT19088)
16	14H1040	8	Nut	1/2", (SUB FOR 14H809)
17	12H301	8	Lock Washer	1/2"
18	19H3265	4	Cap Screw	HS, SAE 8, 1/2" X 1-7/8"
19	12H301	4	Lock Washer	1/2"
20	T23957	2	STRAP	-
21	T23958	1	SUPPORT	LEFT
22	T23956	1	SUPPORT	RIGHT
23	AT19092	2	LIMB RISER	(4-ROLLER)
23	AT38036	2	PIPE	(5 ROLLER) (SUB FOR AT19095)
24	12H294	2	Lock Washer	5/8"
25	14H1039	2	Nut	5/8"
26	19H2592	2	CAP SCREW	5/8" X 2-1/8"
27	AT52358	1	SUPPORT	RIGHT
28	AT52359	1	SUPPORT	LEFT
29	19H3244	1	Cap Screw	5/8" X 2-1/4"
29	19H2008	1	Cap Screw	5/8" X 1-5/8"
..	AT19307	1	ROPS	(5 ROLLER TRACK FRAME) (SUB AT38934) (INCLUDES T106705 AND T43705)

PROTECTIVE CANOPY (WHEN EQUIPPED WITH OUTSIDE DOZER, WITH OR WITHOUT WINCH AND WITHOUT COUNTERWEIGHT, RIPPER OR BACKHOE MOUNTING) [01J09]
