Открытый узел

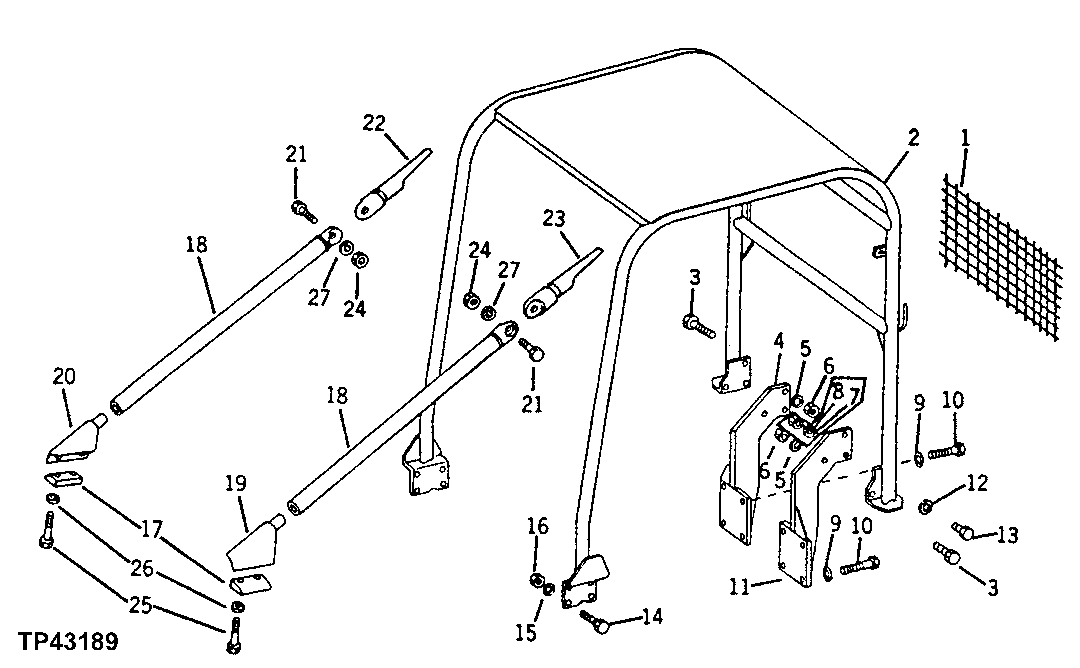

PROTECTIVE CANOPY (WHEN EQUIPPED WITH INSIDE DOZER, WITH OR WITHOUT WINCH AND WITHOUT COUNTERWEIGHT, RIPPER OR BACKHOE MOUNTING) [01J10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T39029	1	SCREEN	(SUB FOR T23975)
2	-	1	Part 2	(SUB AT38934) (INCLUDES T106705 AND T43705) (SUB FOR AT19087 AND AT19305)
3	19H3244	5	Cap Screw	5/8" X 2-1/4"
4	AT19090	1	SUPPORT	REAR RIGHT
5	12H294	5	Lock Washer	5/8"
6	14H1039	5	Nut	5/8"
7	12H294	1	Lock Washer	5/8"
8	14H1039	1	Nut	5/8"
9	12H236	8	Lock Washer	3/4"
10	19H2411	8	Cap Screw	3/4" X 2-1/2"
11	AT19091	1	SUPPORT	REAR LEFT
12	12H294	1	Lock Washer	5/8"
13	19H3244	1	Cap Screw	5/8" X 2-1/4"
13	19H2008	1	Cap Screw	5/8" X 1-5/8"
14	19H3265	8	Cap Screw	HS, SAE 8, 1/2" X 1-7/8"
15	12H301	8	Lock Washer	1/2"
16	14H1040	8	Nut	1/2"
17	T23957	2	STRAP	-
18	AT19092	2	LIMB RISER	(4-ROLLER)
18	AT38036	2	PIPE	(5 ROLLER) (SUB FOR AT19095)
19	T23958	1	SUPPORT	LEFT
20	T23956	1	SUPPORT	RIGHT
21	19H2592	2	CAP SCREW	5/8" X 2-1/8"
22	AT52358	1	SUPPORT	RIGHT
23	AT52359	1	SUPPORT	LEFT
24	14H1039	2	Nut	5/8"
25	19H3182	4	CAP SCREW	1/2" X 1-7/8"
26	12H301	4	Lock Washer	1/2"
27	12H294	2	Lock Washer	5/8"
..	AT19309	1	AT19309	(5 ROLLER TRACK FRAME) (SUB AT38934) (INCLUDES T106705 AND T43705)

PROTECTIVE CANOPY (WHEN EQUIPPED WITH INSIDE DOZER, WITH OR WITHOUT WINCH AND WITHOUT COUNTERWEIGHT, RIPPER OR BACKHOE MOUNTING) [01J10]

Нет текстового описания
