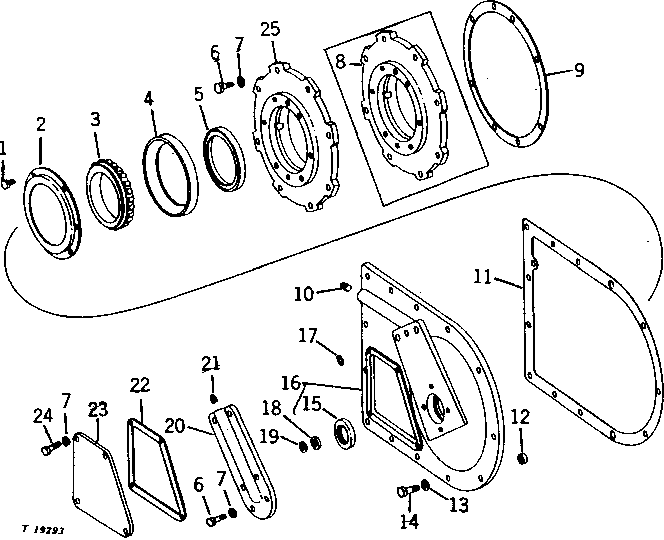

NO. 3315 POWER WINCH LEFT QUILL ASSEMBLY [01H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1227	6	Cap Screw	1/4" X 1/2"
2	T16358	1	RETAINER	INNER
2	T33172	1	RETAINER	INNER
3	JD8915	1	Bearing Cone	-
3	JD9050	1	Bearing Cone	-
4	JD8245	1	Bearing Cup	-
4	JD9115	1	Bearing Cup	-
5	AT14835	1	SEAL	-
5	AT32441	1	SEAL	-
6	19H2676	14	Cap Screw	HS, SAE 8, 3/8" X 1"
7	12H304	18	Lock Washer	3/8"
8	T19771	1	BEARING HOUSING W/O BEARING	-
9	-	1	Part 13	(MAKE FROM T43514 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T16388)
10	15H275	1	Pipe Plug	1/4"
11	-	1	Part 15	(MAKE FROM T43514 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T19799)
12	M827T	2	BUSHING	-
13	12H293	13	Lock Washer	7/16"
14	19H3104	13	Cap Screw	7/16" X 1-1/4"
15	AT33402	1	Seal	-
16	AT20659	1	BEARING HOUSING W/O BEARING	(MARKED T19801), LEFT, WITH OIL SEAL AND PLUG
17	P46051	1	O-Ring	-
18	T17511	1	BACK-UP RING	-
19	T19811	1	SEAL	-
20	T19800	1	FILLER CAP	-
21	15H558	1	Pipe Plug	1/8"
22	T18588	1	GASKET	-
23	T18586	1	COVER	-
24	19H3483	4	Cap Screw	3/8" X 1-1/8"
25	T33171	1	BEARING HOUSING W/O BEARING	-

NO. 3315 POWER WINCH LEFT QUILL ASSEMBLY [01H07]
