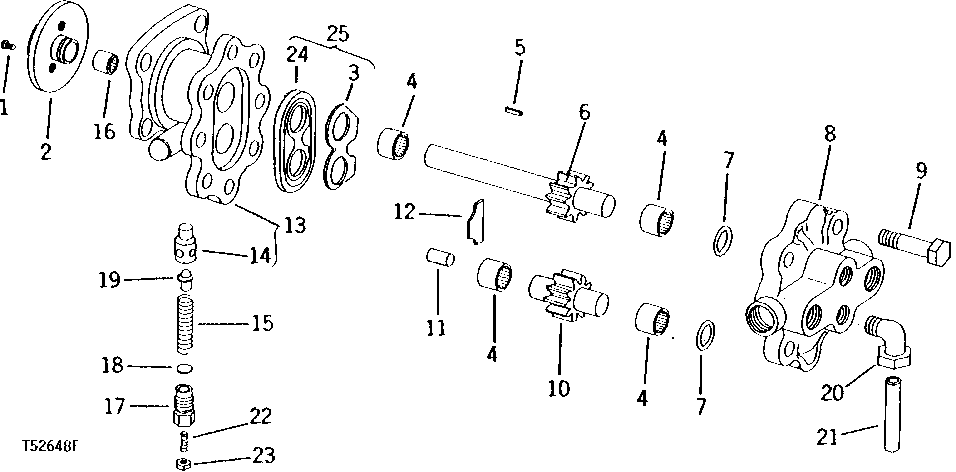

NO. 3315 POWER WINCH HYDRAULIC PUMP (WEBSTER) [01H15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T19964	3	SCREW	-
2	AT169502	1	SEAL KIT	(SUB FOR AT21339)
3	T49032	1	WEAR PLATE	(USED WHEN AT47609 HAS BEEN INSTALLED AS A REPLACEMENT PART)
4	JD9833	4	Needle Bearing	-
5	T19965	1	SHAFT KEY	-
6	-	1	Part 6	( AT21341, USE IF AVAILABLE)
7	T77814	2	O-Ring	(SUB FOR T19963)
8	AT21337	1	COVER	-
9	19H2661	4	Cap Screw	5/16" X 1-3/8"
10	-	1	Part 10	( AT21342, USE IF AVAILABLE)
11	-	2	Part 11	( T19962, USE IF AVAILABLE)
12	-	1	Part 12	( T19961, USE IF AVAILABLE)
13	AT21338	1	HOUSING	-
14	-	1	Part 14	( T19970, USE IF AVAILABLE)
15	T19967	1	SPRING	-
16	JD9833	1	Needle Bearing	-
17	T19969	1	FITTING	(SUB T24920, T24921, T24922, 22H905 AND 14H649)
17	T24920	1	FITTING	-
18	T19968	1	DISK	(SUB T24921, T24920, T24922, 22H905 AND 14H649)
18	T24921	1	DISK	-
19	T19966	1	FLOW CONTROL HYD. VALVE	-
20	AT14474	1	ELBOW FITTING	-
21	T21882	1	TUBE	(SUB FOR T24744)
22	22H905	1	SET SCREW	1/4" X 7/8"
23	14H649	1	Nut	1/4"
24	AT47609	1	SEAL	(USED WHEN AT21340 HAS BEEN REPLACED)
25	AT21340	1	WEAR PLATE	(SUB AT47609 AND T49032)
..	AT20660	1	HYDRAULIC PUMP	(SUB AT23837)
..	AT23837	1	HYDRAULIC PUMP	-
