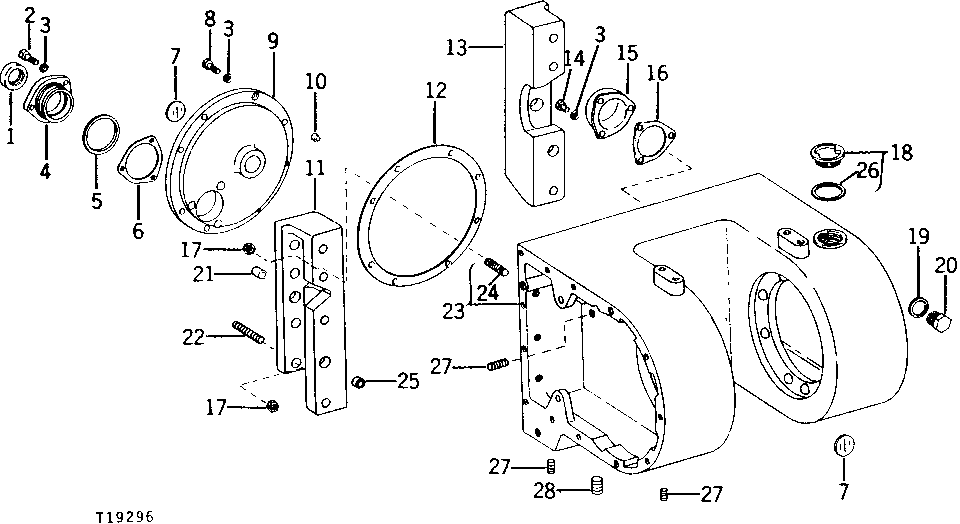

NO. 3315 POWER WINCH HOUSING AND ADAPTERS [01H05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT14831	1	SEAL	-
2	19H3483	3	Cap Screw	3/8" X 1-1/8"
3	12H304	14	Lock Washer	3/8"
4	T16351	1	BEARING HOUSING W/O BEARING	(SUB T32265 AND M4237T)
4	T32265	1	BEARING HOUSING W/O BEARING	-
5	M2374T	1	WASHER	-
5	M4237T	1	O-Ring	-
6	-	1	Part 8	(A) .05 MM (.002") ( T16361 NO LONGER AVAILABLE)
6	-	1	Part 9	(A) .13 MM (.005") ( T16362 NO LONGER AVAILABLE)
6	-	1	Part 10	(A) .25 MM (.010") ( T16363 NO LONGER AVAILABLE)
7	30H23	2	PLUG	1-3/4"
8	19H2552	8	CAP SCREW	3/8" X 1-1/8"
9	T29777	1	COVER	(SUB FOR T16360)
10	M2152T	1	WASHER	-
11	T21365	1	FITTING	LEFT
12	-	1	Part 16	(MAKE FROM T43514 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T16395)
13	T21364	1	FITTING	RIGHT
14	19H2021	3	Cap Screw	3/8" X 5/8"
15	T16365	1	COVER	-
16	T16370	1	GASKET	-
17	14H1039	17	Nut	5/8"
18	AM1935T	1	FITTING PLUG	-
19	T13213	2	WASHER	-
20	M1746T	2	Drain Plug	-
21	T15155	2	DOWEL PIN	-
22	A5292R	8	STUD	-
23	AT25874	1	HOUSING	(SUB AT47049, T55249, T29777 AND T29779) (SUB FOR AT21214) (MARKED T23701 AND T27640)
23	AT47049	1	HOUSING	(SUB FOR AT28031) (MARKED T29775) MARKED T48473
24	A5292R	7	STUD	5/8" X 2-1/4"
24	M3127T	2	STUD	5/8" X 2-1/4" (USE IN COUNTERBORED HOLES ONLY)
25	M14T	2	WASHER	-
26	M2133T	1	GASKET	-
27	15H275	3	Pipe Plug	1/4"
28	15H584	1	Pipe Plug	1/2"

NO. 3315 POWER WINCH HOUSING AND ADAPTERS [01H05]
