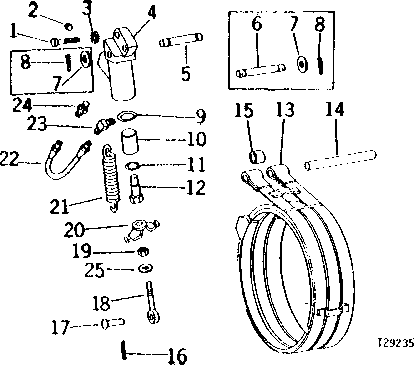

NO. 3315 POWER WINCH BRAKE BAND ASSEMBLY [01H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2719	2	CAP SCREW	7/16" X 1-7/8"
2	15H558	1	Pipe Plug	1/8"
3	12H293	2	Lock Washer	7/16"
4	T23692	1	CYLINDER	(SUB T55249)
4	T55249	1	HYDRAULIC CYLINDER	(SUB FOR T46852)
5	T31728	1	PIN	-
6	T23698	1	PIN FASTENER	(SUB T31728)
7	24H1375	2	Washer	11/16" X 1-1/8" X 0.060"
8	11M7015	2	Cotter Pin	3.200 X 25 MM
9	AT71341	1	SEAL	(SUB FOR A3606R AND R56461, THIS APPLICATION)
10	T23693	1	PISTON	(SUB T73440)
10	T73440	1	PISTON	(SUB FOR T70875)
11	T23694	1	Snap Ring	-
12	T23697	1	NUT	(SUB T70873, T70872 AND (2) 14H934)
12	T70873	1	NUT	-
13	AT108008	1	BRAKE BAND	(SUB FOR AT41546 AND AT43302)
13	AT21240	1	BRAKE BAND	(SUB AT108008) (ALSO ORDER AT29889)
14	T19790	1	PIN	-
15	AT29889	1	KIT	FIELD MODIFICATION
16	11M7081	2	Cotter Pin	2.500 X 20 MM
17	L364T	2	PIN	-
18	T23695	1	EYEBOLT	(SUB T70872, T70873 AND (2) 14H934)
18	T70872	1	EYEBOLT	-
19	14H807	1	Nut	7/16" (SUB FOR 14H934, THIS APPLICATION) (ALSO ORDER 24M7044)
19	14H934	2	Nut	7/16", 7/16" (INSTALL ON EITHER SIDE OF SPRING ANCHOR)
20	T23696	1	ANCHOR	-
21	T64562	2	SPRING	(SUB FOR T23699 AND T24837) (SUB (2) T70874 AND T70875)
21	T70874	2	EXTENSION SPRING	-
22	AT21243	1	OIL LINE	BRAKE CYLINDER TO WINCH HOUSNG
23	AR26635	1	ELBOW FITTING	-
24	R26892	1	Fitting	-
25	T19583	1	WASHER	-

NO. 3315 POWER WINCH BRAKE BAND ASSEMBLY [01H08]
