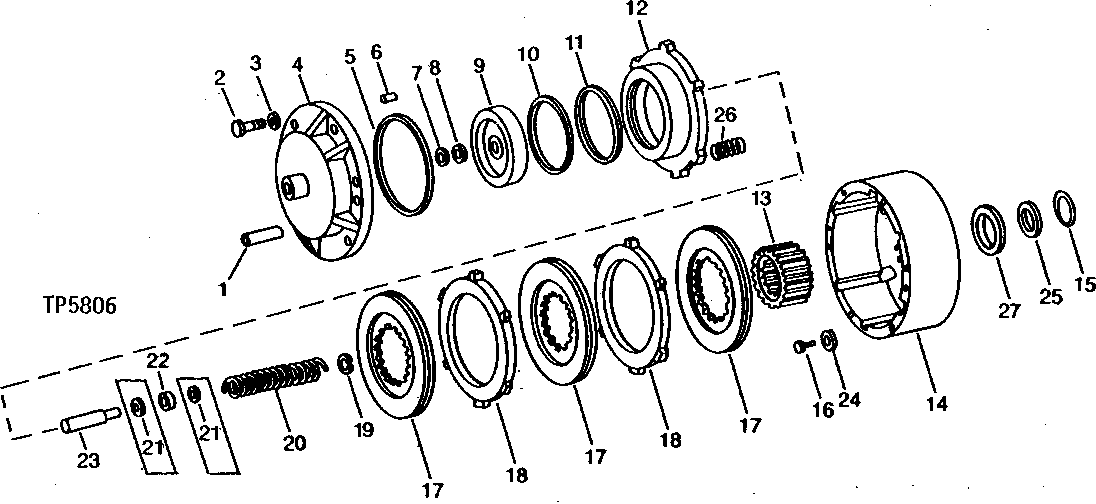

NO. 3315 POWER WINCH BRAKE AND CLUTCH DISK ASSEMBLY [01H09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T19780	1	BUSHING	-
2	19H2993	6	Cap Screw	1/2" X 1-1/2"
2	19H2473	6	Cap Screw	1/2" X 1-3/4", (USE WHEN T118795 HAS BEEN INSTALLED AS A REPLACEMENT PART)
3	12H301	6	Lock Washer	1/2"
4	T19779	1	COVER	-
5	T19808	1	SEAL	-
6	M17T	2	DOWEL PIN	-
7	T19811	1	SEAL	-
8	T17511	1	BACK-UP RING	-
9	T19778	1	PISTON	-
10	T19807	1	WASHER	-
11	T19806	1	SEAL	-
12	T19777	1	PLATE	-
13	T19773	1	HUB	-
13	T33175	1	HUB	-
14	T19772	1	DRUM	-
14	T118795	1	BRAKE DRUM	(SUB FOR T39506, T33179, T34598, T58431 AND T65349) (ALSO ORDER (6) 19H1777)
15	T19803	1	SEAL	-
16	T16989	6	CAP SCREW	7/16" X 2"
16	19H2469	6	Cap Screw	1/2" X 2-1/4", (SUB FOR T33173)
17	AT16844	3	DISK	(USE IF AVAILABLE) MIDDLE, (SUB FOR AT114483)
17	AT142063	3	CLUTCH DISK	(SUB FOR AT16844)
18	T19776	2	DISK	INTERMEDIATE
18	T33176	2	DISK	IMTERMEDIATE, (USED WITH T39506)
18	T19615	3	DISK	INTERMEDIATE, (USE WHEN T58431 HAS BEEN INSTALLED AS A REPLACEMENT PART)
19	T19810	1	SNAP RING	-
20	T19774	1	SPRING	-
21	T19805	1	THRUST BEARING	(SUB T25832 AND T25833)
22	JD9827	1	THRUST BEARING	(SUB T25832 AND T25833)
22	T25833	1	THRUST BEARING	-
23	T19775	1	GUIDE	(SUB T25832 AND T25833)
23	T25832	1	PIN	-
24	T33177	6	WASHER	-
25	U11021	1	BACK-UP RING	-
26	U15753	6	SPRING	(USE WHEN T58431 HAS BEEN INSTALLED AS A REPLACEMENT PART)
27	T72840	1	WASHER	-

NO. 3315 POWER WINCH BRAKE AND CLUTCH DISK ASSEMBLY [01H09]
