NO. 3310 MANUAL WINCH HYDRAULIC CONTROLS [01G14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

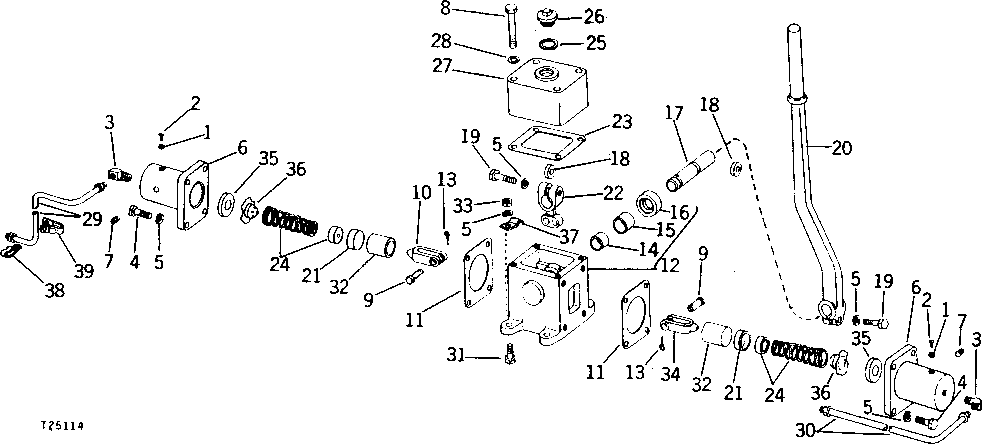

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T16415	2	WASHER	-
2	T18516	2	SCREW	NO. 8 X 5/16"
3	M3852T	2	ELBOW FITTING	-
4	19H3483	8	Cap Screw	3/8" X 1-1/8"
5	12H304	14	Lock Washer	3/8"
6	T18883	2	CYLINDER	-
7	15H558	2	Pipe Plug	1/8"
8	19H1907	4	Cap Screw	5/16" X 2-3/4"
9	P48769	2	Pin Fastener	(SUB FOR L4668T)
10	T18880	1	YOKE	REAR
11	T16416	2	GASKET	-
12	AT22638	1	HOUSING	(MARKED T16412) CONTROL SHAFT, WITH BUSHINGS AND OIL SEALS
12	AT14848	1	HOUSING	(SUB AT22638 AND AT22640)
13	11M7081	2	Cotter Pin	2.500 X 20 MM
14	M1638T	1	BUSHING	-
15	M3581T	1	BUSHING	-
16	AM586T	1	SEAL	-
16	AT22639	1	SEAL	-
17	T16423	1	SHAFT	(SUB AT22640 AND AT22639)
17	AT22640	1	SHAFT	-
18	T14520	2	Washer	-
19	19H2633	2	Cap Screw	3/8" X 1-1/2"
20	T23868	1	LEVER	-
21	T18878	2	OIL CUP	-
22	T18882	1	BELLCRANK	-
23	T16426	1	GASKET	-
24	AT17530	1	SPRING	-
25	T17066	1	GASKET	-
26	AT15085	1	LUBRICATION FITTING	-
27	T18877	1	COVER	-
28	12H303	4	Lock Washer	5/16"
29	AT18954	1	LINE	CLUTCH AND BRAKE
30	AT18953	1	LINE	BRAKE
31	03H1480	4	Bolt	3/8" X 1-1/4"
32	T18879	2	PISTON	-
33	14H732	4	Nut	3/8"
34	T18881	1	YOKE	FRONT
35	T17453	2	VALVE SEAT INSERT	(A) (SUB AT31636)
36	AT15620	2	VALVE	(A) (SUB AT31636)
37	T15272	1	CLAMP	-
38	T23843	1	CLIP	(SUB FOR T19108)
39	T23843	1	CLIP	LEFT FENDER
..	AT31636	1	KIT	VALVE AND SEAT
