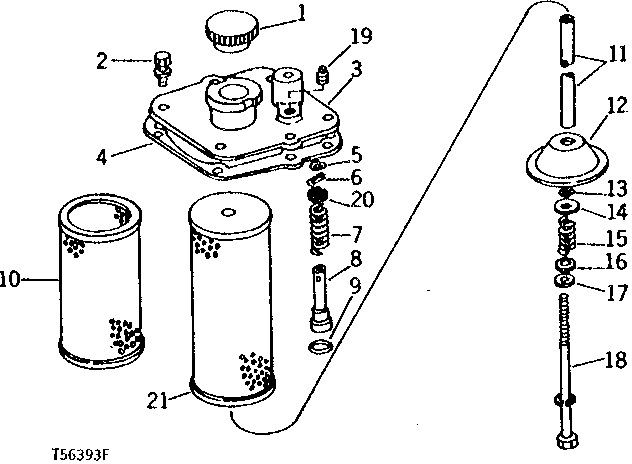

MICRONIC FILTER AND RESERVOIR CAP ASSEMBLY (323.9 MM (12-1/2") TANK) [01J25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT84988	1	FILLER CAP	(SUB FOR AU14021)
2	19H2284	6	Cap Screw	3/8" X 7/8"
2	12H304	6	Lock Washer	3/8"
3	U16803	1	CAP	(SUB U41345 AND 15H604)
3	U41345	1	CAP	-
4	U17022	1	GASKET	IF AVAILABLE
4	T84537	1	GASKET	(SUB FOR U17022)
5	R394R	1	O-Ring	-
6	34H247	1	Spring Pin	1/8" X 3/4", (SUB FOR U17154)
7	U12595	1	SPRING	-
7	U41513	1	SPRING	-
8	U17024	1	PISTON	-
9	U12037	1	O-Ring	-
10	AT24274	1	FILTER ELEMENT	(7-1/4" LONG) (SUB FOR U12610)
11	U17023	1	BUSHING	-
12	U17020	1	COVER	(USE WITH U41343 MICRONIC FILTER)
13	R26375	1	O-Ring	(SUB FOR U10778)
14	24H1379	1	Washer	11/16" X 1-3/4" X 0.036"
15	U13965	1	SPRING	-
16	24H1308	1	Washer	13/32" X 1" X 0.134"
17	24M7296	1	Washer	10.500 X 30 X 2.500 MM
17	24H1314	1	Washer	13/32" X 1-3/4" X 7/64"
18	08H4098	1	CAP SCREW	3/8" X 8"
18	08H4497	1	CAP SCREW	3/8" X 9-1/2"
18	12H304	1	Lock Washer	3/8"
19	15H604	1	Pipe Plug	1/4"
20	U41514	1	WASHER	.52" X .875" X .048"
21	AT45422	1	FILTER ELEMENT	(9-1/2") (RETURN LINE FILTER) (SUB FOR U41343)

MICRONIC FILTER AND RESERVOIR CAP ASSEMBLY (323.9 MM (12-1/2") TANK) [01J25]
