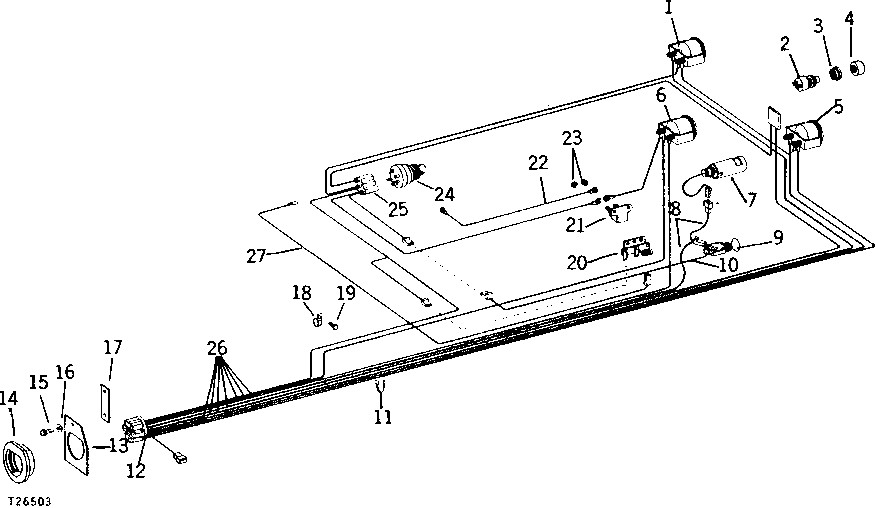

INSTRUMENT PANEL WIRING SYSTEM (SERIAL NO. 70955- ) [02B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H246	2	LOCK WASHER	0.190"
1	AT149014	1	KIT	OIL PRESSURE, (SUB FOR AT24101, AT26810 AND AT28167)
2	AR47373	1	SWITCH	(SUB FOR R39554)
3	R21157	1	NUT	(SUB T58440)
4	T58440	1	CAP	(SUB FOR R39549 AND T31142)
5	AT28168	1	GAUGE	TEMPERATURE, (SUB FOR AT27365)
5	-	1	Part 7	STEWART-WARNER, (SUB FOR AT28168)
5	AT104755	1	TEMPERATURE GAUGE	(K) VDO
6	AT28166	1	AMMETER	(SUB FOR AT18719 AND AT26809) (USE IF AVAILABLE)
6	AT41802	1	AMMETER	(SUB FOR AT28166)
7	AR33479	1	LAMP	-
8	AT18814	1	WIRING HARNESS	LIGHT SWITCH
9	AM31209	1	SWITCH	(SUB FOR AT18934)
10	AT26014	1	Wiring Lead	LIGHT SWITCH TO IGNITION SWITCH
11	R44302	1	Tie Band	(SUB FOR R27457)
12	T25315	1	HOUSING	-
13	T24832	1	BRACKET	-
14	T24833	1	GROMMET	-
15	19H1919	1	Cap Screw	1/4" X 5/8", (WITH LOADER)
16	12H302	1	Lock Washer	1/4", (WITH LOADER)
17	AT22862	1	BRACKET	(WITH LOADER)
18	AT13846	1	CLAMP	-
19	37H47	2	SCREW	NO. 8 X 1/2"
20	AA5791R	1	RESISTOR	(SUB FOR T23675) (ALSO ORDER (2) 57M7085) (GASOLINE)
21	AR28403	1	CIRCUIT BREAKER	-
22	-	1	Part 26	CIGAR LIGHTER TO CIRCUIT BREAKER (MAKE FROM 177 MM (7") OF R66319 AND (2) R32018 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT26016)
23	14H631	2	Nut	0.190"
24	AT21880	1	SWITCH	-
25	T21201	1	ELECTRICAL CONNECTOR ASSY	IGNITION
26	AT26015	1	WIRING HARNESS	(INCLUDES KEY 12 AND 25)
27	AT21891	1	WIRING LEAD	RESISTOR (GASOLINE)
