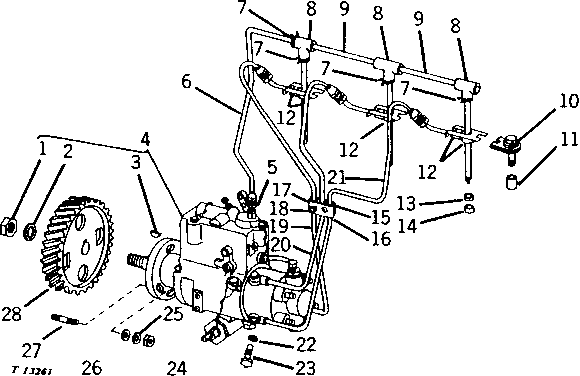

FUEL INJECTION SYSTEM (SERIAL NO. 10001-60523) [01D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H832	1	Nut	9/16"
2	12H317	1	Lock Washer	9/16"
3	26H10	1	Shaft Key	5/32" X 5/8"
4	AT21576	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. DCGFC331-13DH) (SUB FOR AT18035) (SUB AR70139)
4	AR70139	1	FUEL PUMP	(ROOSA-MASTER NO. DBGFC331-1AJ)
4	SE500565	1	FUEL INJECTION PUMP REMAN	(SUB FOR AR70139) (REMANUFACTURED)
5	R35352	1	Fitting	-
6	AT20286	1	FUEL LINE	-
7	R34766	9	Clamp	-
8	T23425	3	BOOT	-
9	T23422	2	TUBE	-
10	R34760	3	CLAMP	(WITH SCREW AND WASHER)
11	R34761	3	SPACER	(K) (SUB RE32011)
12	AR89564	3	INJECTION NOZZLE	(ROOSA-MASTER NO. 22202) (SUB FOR AT18064, AT25502, AT30299, AR49877, AR56290, AR73673 AND AR88239) (ROOSA-MASTER NOS. 17427, 17511, 17579, 18742, 19762, 20500, 20631 OR 22042)
13	R34764	3	WASHER	(K) (UPPER) (USE WITH AR56290 AND AR89564) (SUB RE32011)
13	R60746	3	WASHER	(UPPER) (USE WITH AR73673 AND AR88239)
14	R48000	3	Seal	(LOWER) (SUB FOR R34767)
15	R61145	1	Strap	-
15	R59297	1	Half Clamp	-
15	T23461	1	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
16	T23460	1	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
16	R59297	1	Half Clamp	-
16	R59298	1	Strap	-
17	12H246	2	LOCK WASHER	0.190", (USE WITH T23460 AND T23461)
18	21H1317	2	SCREW	0.190" X 5/8", (USE WITH T23460 AND T23461)
18	AR76704	2	SCREW	(WITH WASHER)
19	AT18065	1	FUEL LINE	NO. 1
20	AT18099	1	FUEL LINE	NO. 2
21	AT18111	1	FUEL LINE	NO. 3
22	T20055	6	WASHER	-
23	R26726	3	HOLLOW SCREW	-
24	14H812	2	NUT	3/8"
25	12H304	2	Lock Washer	3/8"
26	24M7096	2	Washer	0.413" X 0.709" X 0.063"
27	T20052	2	STUD	-
28	R84663	1	GEAR	(SUB FOR T20165) (48 TEETH)

FUEL INJECTION SYSTEM (SERIAL NO. 10001-60523) [01D05]
