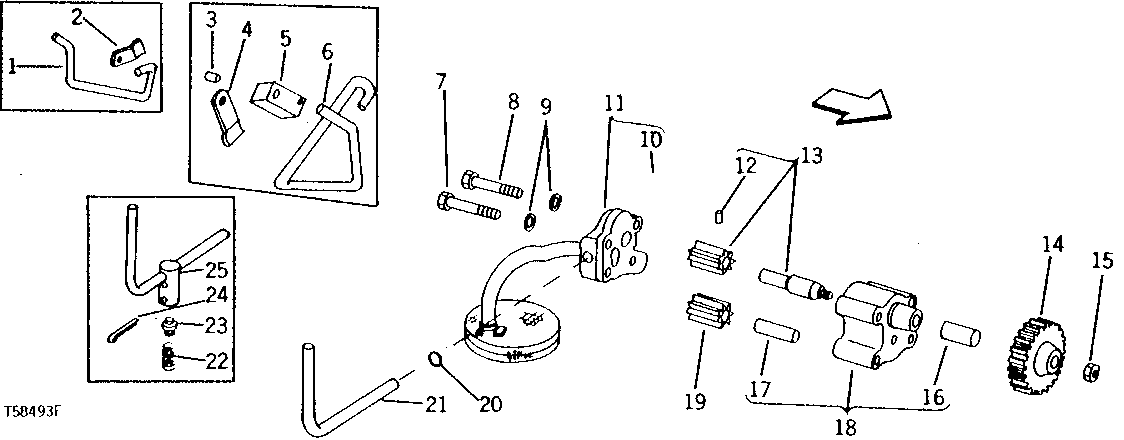

ENGINE OIL PUMP (SERIAL NO. -111710) [01B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20138	1	TUBE	(SUB T24758 AND R27528)
2	T24168	1	CLAMP	(SUB T24758 AND R27528)
3	B2641R	1	DOWEL PIN	-
4	R27528	1	CLAMP	-
5	T20136	1	FITTING	-
6	T24758	1	OIL LINE	-
7	19H3445	1	Cap Screw	3/8" X 3-3/4", (USE WITH AT24254)
8	R57059	3	CAP SCREW	(USE WITH AT24254)
9	12H304	4	Lock Washer	3/8", (USE WITH AT24254)
10	15H560	1	Pipe Plug	(HEX. CTSK.) 1/16"
11	AT23045	1	COVER	(SUB FOR AT18020)
11	AT24254	1	COVER	(SUB RE55345 AND R113752)
12	34H280	1	Spring Pin	3/16" X 7/8", (SUB FOR M3853T, THIS APPLICATION)
13	AT18126	1	DRIVE SHAFT	(WITH GEAR AND PIN)
13	AR62978	1	PINION	(WITH GEAR AND PIN) (USED WHEN AR62979 HAS BEEN INSTALLED AS A REPLACEMENT PART)
14	T20298	1	Gear	(33 TEETH)
15	14H826	1	Nut	1/2"
16	T20093	1	BUSHING	-
17	T20091	1	DOWEL PIN	-
18	AT18021	1	HOUSING	(WITH IDLER SHAFT AND BUSHING) (MARKED T20078) (SUB RE55343 AND R113752) (FOR UNITS BELOW ENGINE SERIAL NO. 215238, ALSO ORDER R83169, T27658 AND T27657)
18	AT32606	1	HOUSING	(WITH IDLER SHAFT) (MARKED T20078) (SUB RE55343 AND R113752) (FOR UNITS BELOW ENGINE SERIAL NO. 215238, ALSO ORDER R83169, T27658, AND T27657)
18	AR62979	1	HOUSING	(WITH IDLER SHAFT) (MARKED R54615) (SUB RE55343 AND R113752)
19	T20097	1	GEAR	(7 TEETH)
19	R54614	1	GEAR	(7 TEETH) (USED WHEN AR62979 HAS BEEN INSTALLED AS A REPLACEMENT PART)
20	R74354	1	O-Ring	(SUB FOR R27166, THIS APPLICATION)
21	T20050	1	OIL TUBE	-
22	T23619	1	SPRING	-
23	T20067	1	VALVE	-
24	11M7030	1	Cotter Pin	5 X 40 MM
25	AT21199	1	SET SCREW	-
