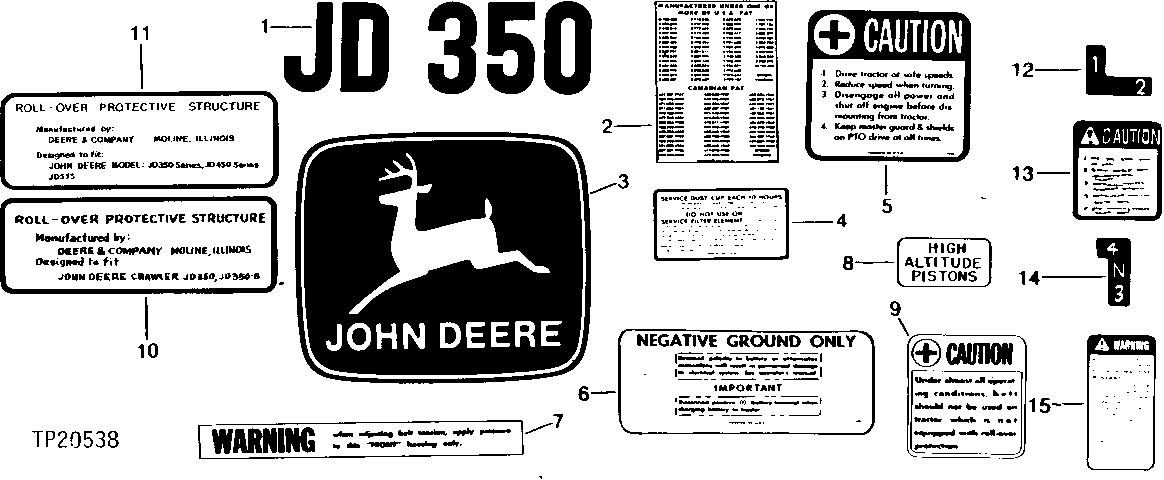

DECALS AND LABELS [02C22]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T23821	1	LABEL	(SERIES DESIGNATION)
2	-	1	Part 2	(TRACTOR PATENT) ( T23805 NO LONGER AVAILABLE)
3	JD5306	1	LABEL	(A) (LEAPING DEER) (SUB FOR T23725)
3	JD5327	1	LABEL	(LEAPING DEER) (SPANISH) (SUB FOR T23726)
4	T23804	1	LABEL	(A) (AIR CLEANER)
4	T23816	1	LABEL	(AIR CLEANER) (SPANISH)
5	-	1	Part 7	(A) (SAFETY) (SUB T78176 FOR T21141 AND T34955)
5	T23813	1	SAFETY SIGN	(SAFETY) (SPANISH)
6	-	1	Part 9	(A) (BATTERY CONNECTION AND CAUTION) ( T23616 NO LONGER AVAILABLE)
6	T23812	1	LABEL	(BATTERY CONNECTION) (SPANISH)
7	-	1	Part 11	(ALTERNATOR WARNING) ( T23520 NO LONGER AVAILABLE)
8	A5207R	1	LABEL	(HIGH ALTITUDE PISTONS)
9	R81424	1	Safety Sign	(SEAT BELT CAUTION) (WITHOUT ROLL-OVER PROTECTION) (SUB FOR R42732)
9	T43705	1	SAFETY SIGN	CAUTION, SEAT BELT (WITH ROLL-OVER PROTECTION)
10	T106705	1	LABEL	ROLL-OVER PROTECTIVE STRUCTURE, (SUB FOR T40241 AND T50927)
11	T106833	1	LABEL	OSHA, ROLL-OVER PROTECTIVE STRUCTURE, (SUB FOR T48974, T55248 AND T75785)
12	T21312	1	LABEL	(A) TRANSMISSION UPPER SHIFT INDICATOR
13	T78176	1	SAFETY SIGN	(A) OPERATION SAFETY, (SUB FOR T34954) (USE WITH 7350 LOADER)
14	T78178	1	LABEL	(A) GEAR SHIFT LEVER INDICATOR
15	T146102	1	Label	(A) START SAFETY, (SUB FOR T75512, T146102 AND T146102 OR T146102)
..	AT77477	1	LABEL KIT	(SUB FOR AT27815)
