Открытый узел

CROSSBAR ASSEMBLY [01I21]

CROSSBAR ASSEMBLY [01I21]

CROSSBAR ASSEMBLY [01I21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

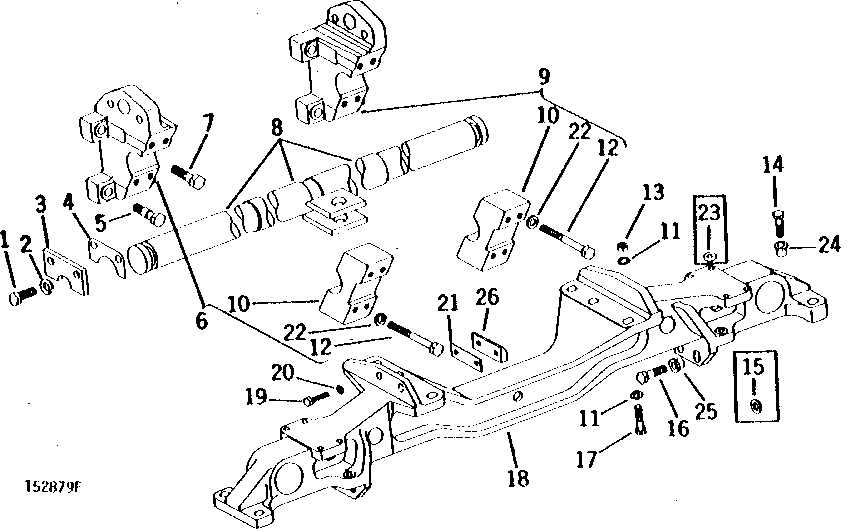

CROSSBAR ASSEMBLY [01I21]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2431	4	CAP SCREW	(C) 3/4" X 2-1/4", (SUB FOR 19H1782)
1	19H2717	4	Cap Screw	3/4" X 1-3/4"
2	12H236	4	Lock Washer	3/4"
3	T21248	2	RETAINER	REAR
4	T20751	1	SHIM	(C) 1.5 MM (.060")
5	19H2728	4	Cap Screw	HS SAE 8, 3/4" X 3" OUTER LOWER AND INNER UPPER, (SUB FOR T10042, THIS APPLICATION)
5	T10510	4	Washer	(USE IF AVAILABLE)
5	R78019	4	Washer	(SUB FOR T10510)
6	AT35459	1	BRACKET	REAR BAR RIGHT, (MARKED T30951) (SUB FOR T13866)
7	R78019	4	Washer	(SUB FOR T10510)
7	T10510	4	Washer	(USE IF AVAILABLE)
7	19H2728	4	Cap Screw	HS, SAE 8, 3/4" X 3", OUTER UPPER AND INNER LOWER
8	AT45070	1	CROSSBAR	REAR CROSS, (SUB FOR AT18410) (FOR 6300 AND 6305 BULLDOZER, ALSO ORDER AT45071 SPACER ADAPTER)
8	AT45070	1	CROSSBAR	REAR CROSS, (SUB FOR AT18410) (FOR 6310 BULLDOZER, ALSO ORDER AT45072 SPACER ADAPTER) (SEE PAGE 55-8)
9	AT35460	1	BRACKET	REAR BAR, LEFT, (MARKED T30952) (SUB FOR T13867)
10	T13868	2	CAP	REAR BAR (USED WITH T13866 OR T13867)
11	24M7241	8	Washer	17 X 34 X 4 MM, (SUB FOR T19584, T21229 AND T40728)
11	T17776	8	Washer	(A)
12	19H2718	8	Cap Screw	5/8" X 4-3/4"
13	14H794	2	Nut	(A) 3/4"
13	9027YT	2	LOCK NUT	-
14	19H1356	8	CAP SCREW	5/8" X 1-3/4"
15	T17776	4	Washer	-
16	19H1768	4	Cap Screw	3/4" X 2"
17	19H2592	6	CAP SCREW	5/8" X 2-1/8"
17	19H2411	6	Cap Screw	(A) 3/4" X 2-1/2"
18	T20894	1	BAR	(SUB T34401, (4) T26161 AND (8) T26160)
18	T34401	1	CROSSBAR	FRONT, (SUB FOR T26159)
19	19H2473	4	Cap Screw	1/2" X 1-3/4"
19	19H2710	4	Cap Screw	(A) 5/8" X 1-3/4"
20	T21228	4	Washer	-
20	24M7241	4	Washer	(A) 17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
21	T20892	1	STRAP	0.9 MM (.036")
21	T34493	1	STRAP	(A) 0.9 MM (.036")
22	T497T	8	WASHER	-
23	24M7241	8	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
24	T26160	8	BUSHING	-
25	T26161	4	BUSHING	-
26	T34402	2	BAR	(A)
..	-	1	Part 40	SIDE FRAME AND FRONT CROSSBAR HARDWARE ( AT35054 USE IF AVAILABLE)
..	AT45071	1	SPACER	-
