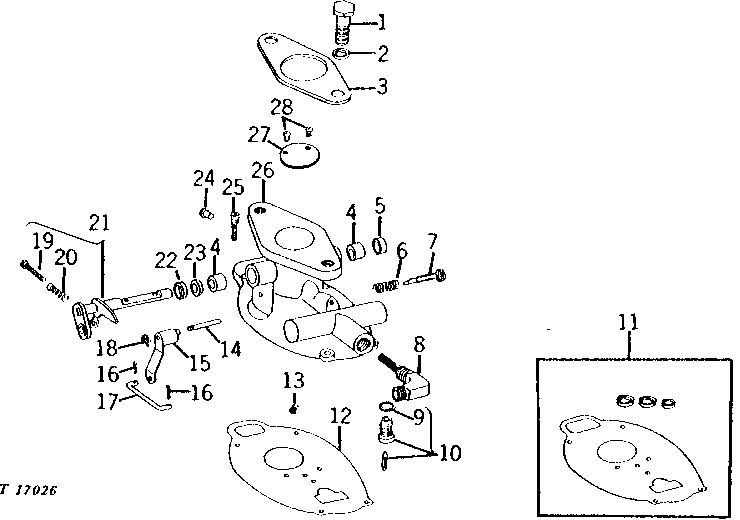

CARBURETOR THROTTLE BODY ASSEMBLY (MARVEL-SCHEBLER NO. TSX-907) (SERIAL NO. 15906- ) [01F04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
2	12H304	2	Lock Washer	3/8"
3	T10079	1	GASKET	(A)
4	T23531	2	NEEDLE BEARING	-
5	R10300	1	PLUG	-
6	24-340	1	SPRING	(A)
7	43-33	1	NEEDLE	(A)
8	T23528	1	STRAINER	-
9	R10170	1	GASKET	(A)
10	AT25491	1	VALVE	(A) (SUB FOR AT17437) (ALSO ORDER T23532 AND T23536)
11	RE244066	1	KIT	(SUB FOR 16-654)
12	16A41	1	GASKET	(A)
13	49-101L	1	NOZZLE	-
14	T25147	1	PIN FASTENER	-
15	T25159	1	LEVER	-
16	11M7075	2	Cotter Pin	1.200 X 12 MM, (SUB FOR T25150)
17	T25149	1	PIN	-
18	R31935	1	Snap Ring	(SUB FOR T25148)
19	T27410	1	SCREW	-
20	R10104	1	SPRING	-
21	AT25824	1	SHAFT	(SUB FOR AT23002)
22	R10182	1	ROUND RETAINER	(A)
23	R10194	1	PACKING	(A)
24	-	1	Part 24	( B17682 NO LONGER AVAILABLE)
25	15A85	4	SCREW	NO. 12 X 3/4"
26	AT23003	1	HOUSING	(INCLUDES KEY NOS. 4, 5, 8, 14, 15, 18, 19, 20, 21, 22, 23, 24, 27, AND 28)
27	R56747	1	ACCELERATOR	(SUB FOR 14273)
28	B17696	2	SCREW	(A)
..	AT23005	1	CARBURETOR	(ALSO ORDER AR67708 SOLENOID ASSEMBLY AND T25160 POWER JET)
..	RE528308	1	KIT	CARBURETOR REPAIR, (SUB FOR AT23004) ( AR52589 NO LONGER AVAILABLE)

CARBURETOR THROTTLE BODY ASSEMBLY (MARVEL-SCHEBLER NO. TSX-907) (SERIAL NO. 15906- ) [01F04]
