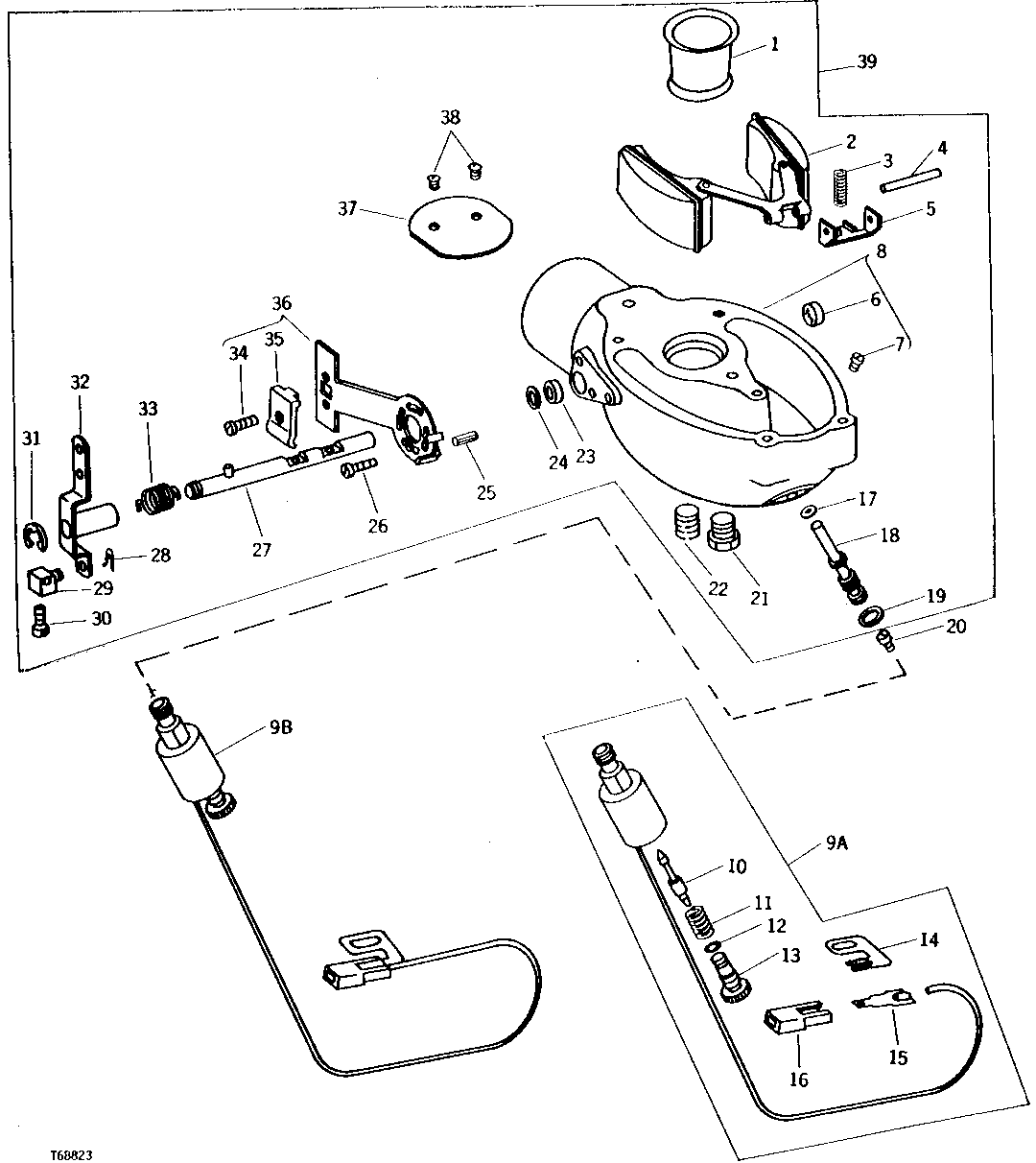

CARBURETOR BOWL ASSEMBLY (MARVEL-SCHEBLER NO. TSX-907) (SERIAL NO. 15906- ) [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30892	1	VENTURI	(SUB FOR 46-A50)
2	30-739	1	FLOAT	-
3	T23532	1	SPRING	-
4	R10211	1	SHAFT	(A)
5	T23536	1	BRACKET	-
6	R10150	1	PLUG	-
7	15-409	1	PLUG	(NO LONGER AVAILABLE)
8	AT23001	1	HOUSING	(INCLUDES KEY NOS. 6, 7, AND 22)
10	AT31878	1	NEEDLE	(SUB FOR AT22991) (SUB AR67708, THIS APPLICATION)
11	T25152	1	SPRING	-
12	R34812	1	O-Ring	(SUB FOR T25154)
13	T32554	1	SCREW	(SUB FOR T25151)
14	-	1	Part 15	( T25153 NO LONGER AVAILABLE)
15	T25156	1	Elec. Connector Terminal	MALE
16	T25155	1	ELECTRICAL CONNECTOR ASSY	-
17	GW46-16-456	1	GASKET	(A) ( 16-456 NO LONGER AVAILABLE)
18	47-455	1	NOZZLE	-
19	16-47	1	GASKET	(A)
20	T25160	1	NOZZLE	-
21	R10160	1	PIPE PLUG	-
22	99-4	1	PIPE PLUG	1/8", HEADLESS
23	R10186	1	SEAL	(A)
24	R10187	1	SHIM	.63 MM (.025")
25	34H242	1	Spring Pin	1/8" X 7/16"
26	21H1315	2	Screw	0.164" X 3/4", (SUB FOR T23522, ALSO ORDER 12H379)
26	12H379	2	Lock Washer	0.164"
27	AT22990	1	SHAFT	-
28	R10185	1	Spring Locking Pin	-
29	R10184	1	SWIVEL	-
30	21H971	1	SCREW	0.164" X 5/16"
31	T23529	1	Snap Ring	-
32	-	1	Part 34	( AT22989 NO LONGER AVAILABLE)
33	R10183	1	TORSION SPRING	-
34	15A295	1	SCREW	-
35	R10188	1	CLIP	-
36	AR30435	1	BRACKET	-
37	T23524	1	CHOKE	-
38	B17696	2	SCREW	(A)
39	AT23005	1	CARBURETOR	(SUB AR67708 SOLENOID ASSEMBLY AND T25160 POWER JET)
..	RE528308	1	KIT	CARBURETOR REPAIR, (SUB FOR AT23004) ( AR52589 NO LONGER AVAILABLE)
9A	AT31877	1	Solenoid	(SUB FOR AT22996) (SUB AR67708, THIS APPLICATION)
9B	AR67708	1	SOLENOID	-

CARBURETOR BOWL ASSEMBLY (MARVEL-SCHEBLER NO. TSX-907) (SERIAL NO. 15906- ) [01F05]
