BREAKAWAY COUPLER RECEPTACLE AND PLUG [01I02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

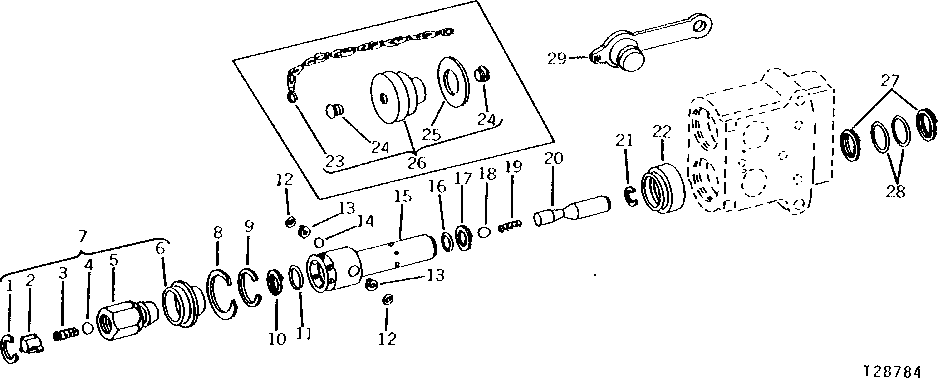

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59633	2	WEAR RING	(SUB FOR R28204) (SUB AR93819, THIS APPLICATION)
2	R28085	2	GUIDE	(SUB AR93819, THIS APPLICATION)
3	R28084	2	SPRING	(SUB AR93819, THIS APPLICATION)
4	D2361R	2	Ball	1/2", (SUB AR93819, THIS APPLICATION)
5	R27430	2	HYD. QUICK-CONNECT COUPLER	(SUB AR93819, THIS APPLICATION)
6	R28006	2	CAP	(NOT INCLUDED IN AR93819)
7	AR93819	2	HYDR.QUICK COUPLER PLUG	(SUB FOR AR30210, THIS APPLICATION)
8	R34399	2	Snap Ring	-
9	R32356	2	SNAP RING	-
10	R26485	2	BACK-UP RING	-
11	R495R	2	O-Ring	-
12	R26484	4	Back-Up Ring	-
13	A3917R	4	O-Ring	-
14	400R	12	Ball	1/4"
15	R34397	2	SOCKET OUTLET	-
16	R375R	2	O-Ring	-
17	R26482	2	Ring	-
18	D2361R	2	Ball	1/2"
19	R28084	2	SPRING	-
20	R34400	2	PLUG	-
21	R26483	2	SNAP RING	-
22	R34398	2	SLEEVE	-
23	R49193	2	Link Chain	(SUB FOR A3184R) (USE WITH AR52623)
24	37H92	4	SCREW	NO. 12 X 1/2", (USE WITH AR52623)
25	R34589	2	WASHER	(USE WITH AR52623)
26	AR52623	2	PLUG	(SUB FOR AR34059) (SUB R32419, THIS APPLICATION)
27	R26480	4	BACK-UP RING	-
28	A4730R	4	O-Ring	-
29	R32419	2	COVER	-

BREAKAWAY COUPLER RECEPTACLE AND PLUG [01I02]
