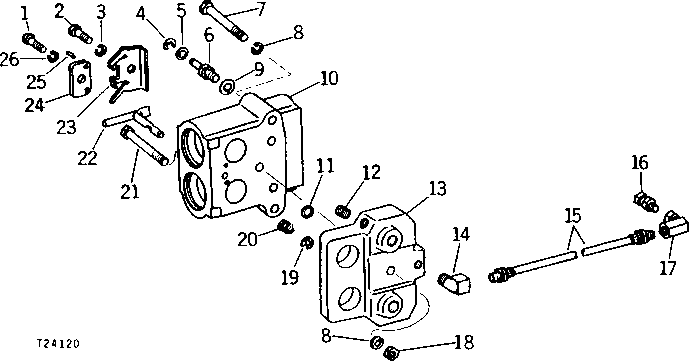

BREAKAWAY COUPLER HOUSING AND PORTING BLOCK [01I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2664	1	Cap Screw	5/16" X 3/4"
2	19H1900	1	Cap Screw	5/16" X 3/4", (USE WITH R45618)
3	12H303	1	Lock Washer	5/16", (USE WITH R45618)
4	R72654	1	Snap Ring	(SUB FOR R27507) (USE WITH R49191)
5	24H1283	1	Washer	7/32" X 1/2" X 0.049", (USE WITH R49191)
6	R49191	1	STUD	-
7	19H2732	2	Cap Screw	3/8" X 2-3/4"
8	12H304	3	Lock Washer	3/8"
9	12H303	1	Lock Washer	5/16", (USE WITH R49191)
10	R34489	1	COUPLING	-
11	A4847R	2	Washer	-
12	15H275	2	Pipe Plug	1/4"
13	T19283	1	JUNCTION BLOCK	-
14	T23837	2	FITTING	-
15	AU13324	2	HYDRAULIC HOSE - FABRICATE	1 054.1 MM (3/8" X 41.5")
16	JD151	1	ADAPTER FITTING	MALE (MECHANICAL SYSTEM)
16	U10530	1	ADAPTER FITTING	(HYDRAULIC SYSTEM)
17	U11461	1	ELBOW FITTING	-
18	14H812	1	NUT	3/8"
19	R72653	2	Snap Ring	(SUB FOR M2396T)
20	R31890	2	Spring	-
21	19H3404	1	Cap Screw	3/8" X 4"
22	AR33877	2	LEVER	-
23	R45618	1	CLIP	(SUB R72654, R49191, 12H303 AND 24H1283)
24	AR75958	1	CAM	(SUB FOR R34402, R41494 AND R51285)
25	34H244	2	SPRING PIN	1/8" X 9/16"
26	12H303	1	Lock Washer	5/16"

BREAKAWAY COUPLER HOUSING AND PORTING BLOCK [01I01]
