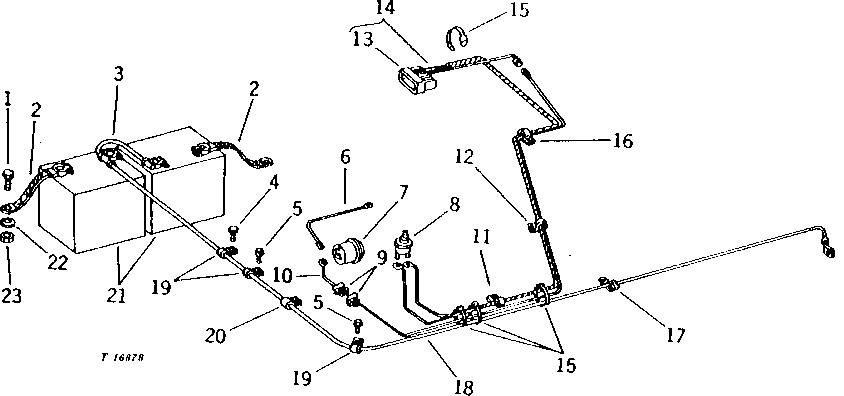

BATTERY CABLES AND HOUR METER WIRING HARNESS [02B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03H1765	1	Bolt	3/8" X 3/4"
2	AT18702	2	GROUND CABLE	(WITH TWO BATTERIES)
3	AT25403	1	CABLE	216 MM (8-1/2") LONG (USED WITH TWO BATTERIES)
4	19H1813	1	CAP SCREW	5/16" X 5/8"
5	37H29	2	Screw	5/16" X 5/8"
6	-	1	Part 6	HOUR METER (MAKE FROM 152 MM (6") OF R66319 AND R32018, T28583 AND U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18715)
7	AT160120	1	HOUR METER	(SUB FOR AT30152 OR AT61458)
8	AT18988	1	SWITCH	-
9	T41072	2	CLIP	(SUB FOR M644T, THIS APPLICATION)
10	-	1	Part 10	(WITHOUT LOADER) (MAKE FROM 1 930 MM (76") OF R65593, R65597, (2) R65604, T28583, T28585 AND U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18984)
11	T12250	1	CLIP	FRONT
12	T13913	1	Clip	-
13	T21203	1	TERMINAL	-
14	AT18705	1	WIRING HARNESS	-
15	R44302	4	Tie Band	(SUB FOR R27457)
16	T13814	1	Clamp	-
17	T20985	1	CLIP	-
18	AT18736	1	CABLE	2 508 MM (98-3/4") LONG (USED WITH TWO BATTERIES) (SUB AT18703 AND AT25403)
18	AT18703	1	BATTERY CABLE	2 337 MM (92") LONG (USED WITH TWO BATTERIES)
18	AT18703	1	BATTERY CABLE	2 337 MM (92") LONG (USED WITH ONE BATTERY)
19	T21101	3	Clamp	-
20	T13073	1	Clip	-
21	AT29159	1	DRY CHARGED BATTERY	12-VOLT, 485 COLD CRANKING AMPS AT -18°C (0°F), 160 MINUTE RESERVE CAPACITY AT 25 AMPS
22	24H1302	1	Washer	13/32" X 11/16" X 0.035"
23	14H812	1	NUT	3/8"

BATTERY CABLES AND HOUR METER WIRING HARNESS [02B08]
