Открытый узел

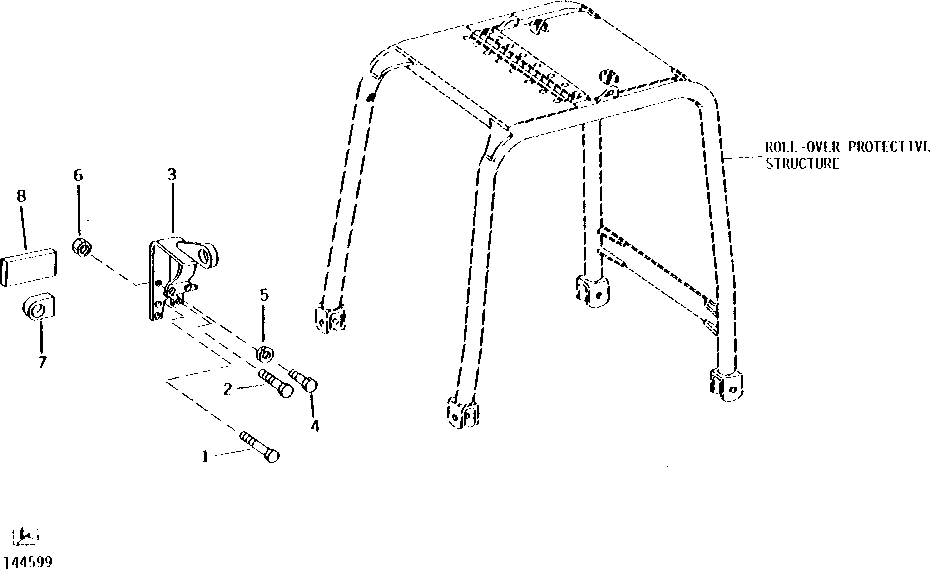

BACKHOE MOUNTING SUPPORTS (WHEN EQUIPPED WITH ROLL-OVER PROTECTIVE STRUCTURE AND NO BULLDOZER, INSIDE OR OUTSIDE BULLDOZER WITH BACKHOE, OR WITH LOADER WITH BACKHOE) [01J16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4446	1	CAP SCREW	(A) 7/8" X 6-3/4", (WHEN EQUIPPED WITH BULLDOZER
2	19H2011	1	CAP SCREW	(A) 7/8" X 3", (WHEN EQUIPPED WITH BULLDOZER)
3	AT44868	1	SUPPORT	(A) FRONT RIGHT (ILLUSTRATED) (WHEN EQUIPPED WITH BULLDOZER)
3	AT44869	1	SUPPORT	(A) FRONT LEFT (WHEN EQUIPPED WITH BULLDOZER)
4	19H3265	4	Cap Screw	(A) HS, SAE 8, 1/2" X 1-7/8" (WHEN EQUIPPED WITH BULLDOZER)
5	12H301	4	Lock Washer	(A) 1/2", (WHEN EQUIPPED WITH BULLDOZER)
6	14H1040	4	Nut	(A) 1/2", (SUB FOR 14H809) (WHEN EQUIPPED WITH BULLDOZER)
7	T43443	1	SUPPORT	(E) (WHEN EQUIPPED WITH LOADER)
8	-	1	Part 9	(E) (WHEN EQUIPPED WITH LOADER) (SUB AT54107)
..	-	1	Part 10	(WHEN EQUIPPED WITH LOADER) ( AT53557 NO LONGER AVAILABLE)
..	AT54107	1	SUPPORT	(WHEN EQUIPPED WITH LOADER)

BACKHOE MOUNTING SUPPORTS (WHEN EQUIPPED WITH ROLL-OVER PROTECTIVE STRUCTURE AND NO BULLDOZER, INSIDE OR OUTSIDE BULLDOZER WITH BACKHOE, OR WITH LOADER WITH BACKHOE) [01J16]

Нет текстового описания
