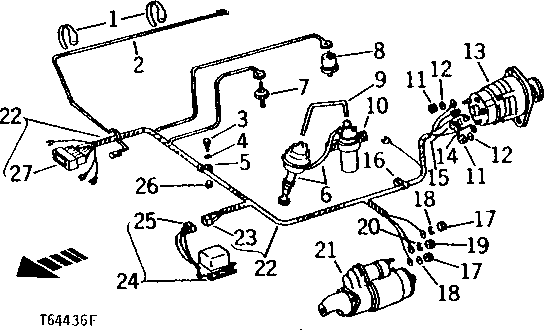

ALTERNATOR, STARTING MOTOR AND FRONT WIRING HARNESS [02B06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	2	Tie Band	(DIESEL) (SUB FOR R27457)
1	R44302	2	Tie Band	(GASOLINE) (SUB FOR R27457)
2	-	1	Part 3	(GASOLINE) (MAKE FROM 940 MM (37") OF R65593, R65597, T28583 AND U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT21892)
2	AT23389	1	WIRING LEAD	(DIESEL)
3	19H2705	1	Cap Screw	5/16" X 1"
3	19H2661	1	Cap Screw	5/16" X 1-3/8", (WITH LOADER)
4	24M7096	1	Washer	0.413" X 0.709" X 0.063"
5	T13814	1	Clamp	-
6	AT21350	1	IGNITION DISTRIBUTOR	(PRESTOLITE NOS. IBT4301B AND IBT4301C) (SUB FOR AT18115)
7	AT28163	1	SENDER	ENGINE TEMPERATURE (USE WITH STEWART-WARNER)
7	AT124052	1	SENDER	ENGINE TEMPERATURE (USE WITH VDO)
7	AH21292	1	SENDER	ENGINE TEMPERATURE
8	-	1	Part 13	ENGINE OIL PRESSURE ( AT18716 - NO LONGER AVAILABLE)
8	AT84200	1	SENDER	(SUB FOR AT24102) ENGINE OIL PRESSURE
9	-	1	Part 15	SECONDARY, 229 MM (9") (MAKE FROM R32006, (2) R32013 AND (2) A3539R FROM AR84006 WIRE REPAIR KIT) (SUB FOR T23428)
10	AT14385	1	ELECTRICAL COIL	(PRESTOLITE NO. 200627)
11	14H778	2	Nut	0.190"
12	12H295	2	Lock Washer	0.190"
13	TY1900	1	ALTERNATOR	(22 AMPERE) (MOTOROLA) (REMANUFACTURED)
13	TY1900	1	ALTERNATOR	(LESS PULLEY AND REGULATOR) (MOTOROLA NOS. 8TA2003DS AND TA12NJD325) (SUB FOR AT36220)
13	AR38458	1	ALTERNATOR	(MOTOROLA NO. RA12NJD453-S) (SUB FOR AT21619) (MOTOROLA NO. A12NJD452)
13	AT21229	1	ALTERNATOR	(SUB AR38458 ALTERNATOR, T24474 PULLEY AND T24473 FAN BELT)
13	TY24306	1	ALTERNATOR	(SUB FOR TY1427) (35 AMPERE) (MOTOROLA) (REMANUFACTURED)
14	12H297	1	Lock Washer	1/4"
15	14H860	1	Nut	1/4"
16	T14264	1	Clamp	-
17	14H605	2	Nut	0.164"
18	T19603	2	LOCK WASHER	-
19	14H732	1	Nut	3/8"
20	12H304	1	Lock Washer	3/8"
21	TY6702	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (DELCO-REMY) (INCLUDES SOLENOID COVER KIT)
21	SE501436	1	STARTER MOTOR	(REMANUFACTURED FOR TY26037)
21	-	1	Part 32	(DELCO-REMY NO. 1998367) (DIESEL) (SUB FOR AT25619, DELCO-REMY NOS. 1107863 AND 1107871 AND AT18150, DELCO-REMY NOS. 1107577 AND 1107599) (DIESEL) (SUB FOR RE19187, DELCO-REMY NO. 1998367) (SUB FOR RE42730) (SUB RE62916)
21	TY26037	1	STARTER MOTOR	(SUB FOR AT18025 OR TY6706) (REMANUFACTURED) (DELCO-REMY NOS. 1107339 AND 1108319) (GASOLINE)
22	AT19187	1	WIRING HARNESS	-
22	AT21893	1	WIRING HARNESS	-
23	T24167	1	Electrical Connector Assy	-
23	T25314	1	Connector	-
24	AT19253	1	REGULATOR	(MOTOROLA NO. R2J1) (SUB FOR T23674)
24	AT42450	1	VOLTAGE REGULATOR	(MOTOROLA NO. RS2J1 AND 8RD2017) (SUB FOR AT21816 AND AT29078) (DO NOT USE AT41069, THIS APPLICATION)
25	T24166	1	Electrical Connector Assy	-
25	T25316	1	ELECTRICAL CONNECTOR ASSY	-
26	14H611	1	Nut	5/16"
27	T23851	1	HOUSING	-
27	T25316	1	ELECTRICAL CONNECTOR ASSY	(SUB FOR T25313)
