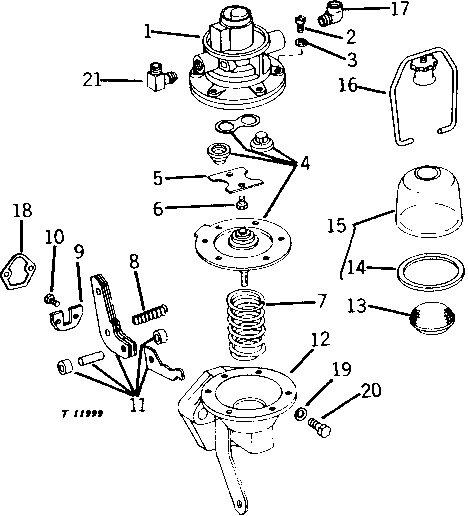

AC FUEL TRANSFER PUMP ASSEMBLY (SERIAL NO. 10001-15389) [01C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(A) (SUB RE43272 OR RE42211) (ALSO ORDER R27285)
2	21H983	6	SCREW	(RD. HD. NO. 10 X 5/8")
3	12H246	6	LOCK WASHER	0.190"
4	AR28326	1	FUEL PUMP	(SUB AR40482)
5	-	1	Part 5	(A) (SUB RE43274 OR RE42211, ALSO ORDER R520618)
6	21H1308	2	Screw	0.138" X 3/8"
7	R30410	1	SPRING	(D)
8	T10804	1	SPRING	(D)
9	-	1	Part 9	(A) (SUB RE43274 OR RE42211, ALSO ORDER R520618)
10	21H1308	2	Screw	0.138" X 3/8" (FILL HD.)
11	AR47304	1	KIT	(ROCKER ARM PARTS) (SUB FOR AR28330) (SUB RE42211, ALSO ORDER R520618)
12	-	1	Part 12	(A) (SUB RE43274 OR RE42211, ALSO ORDER R520618)
13	AT10635	1	SCREEN	-
14	R30409	1	Gasket	(D)
15	AT15172	1	BOWL	(WITH GASKET)
16	AT10638	1	BAIL	-
17	T12938	1	Elbow Fitting	(GASOLINE)
17	T30738	1	ELBOW FITTING	(DIESEL) (SUB FOR AR26674, THIS APPLICATION)
18	R520618	1	Gasket	(D) (SUB FOR R97350, R27285)
19	T27860	2	Washer	(SUB FOR R20498, THIS APPLICATION)
20	19H1849	2	Cap Screw	5/16" X 1-1/4"
21	AR26674	1	ELBOW FITTING	(SUB FOR T30738, THIS APPLICATION)
..	AR34415	1	KIT	(A) (SUB RE42211, ALSO ORDER R520618) (ALSO ORDER AT34816 STRAINER, AT34882 LINE, T12938 ELBOW AND R27346 CONNECTOR) (DIESEL)
..	AR32638	1	FUEL PUMP	(A) (SUB RE43274) (ALSO ORDER AT34816 STRAINER, AT34882 LINE, T12938 ELBOW AND R27346 CONNECTOR) (GASOLINE)
..	RE38578	1	KIT	PUMP OVERHAUL, (SUB FOR AR40482)
