Открытый узел

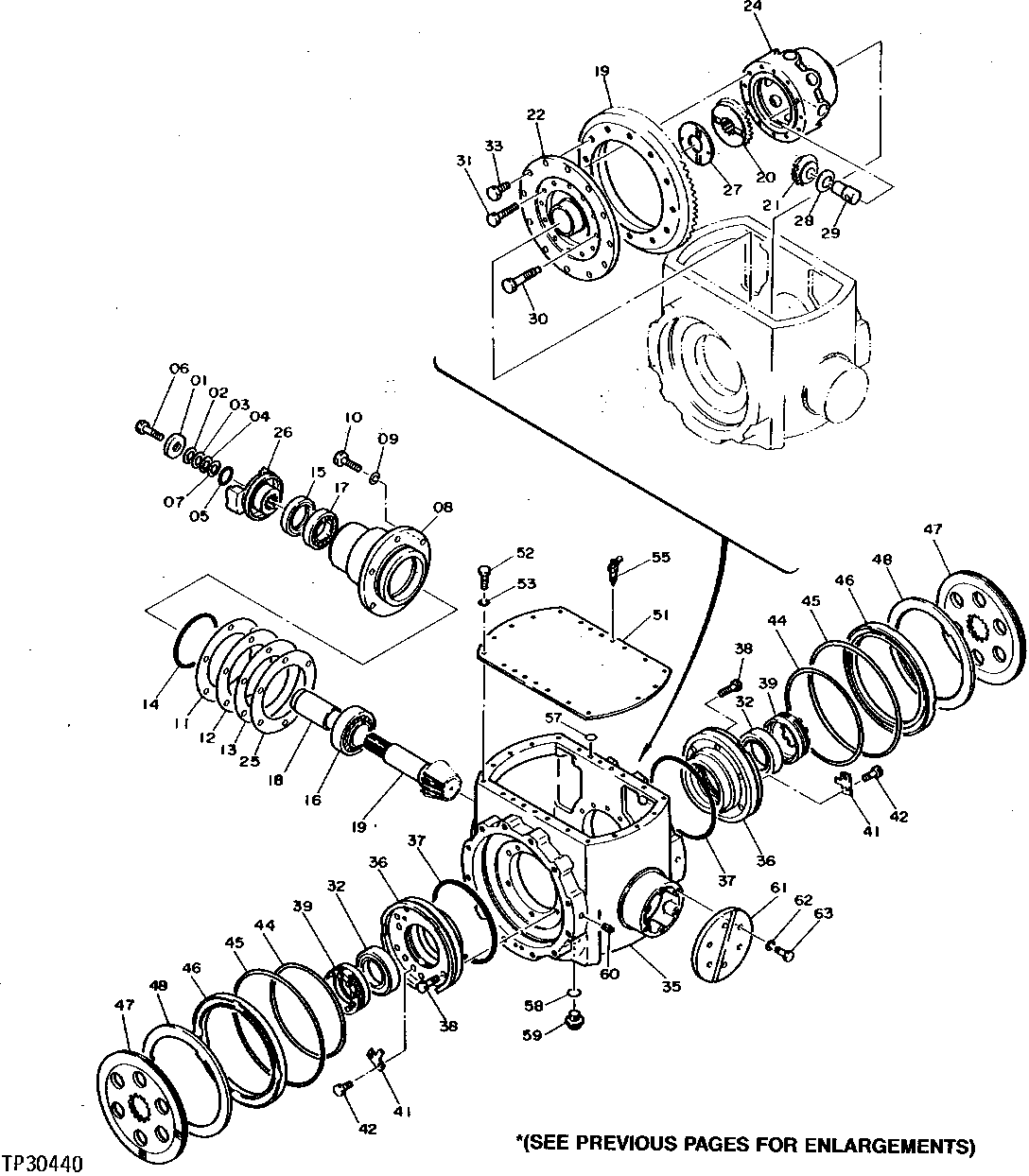

REAR DIFFERENTIAL CASE AND COVER

REAR DIFFERENTIAL CASE AND COVER

REAR DIFFERENTIAL CASE AND COVER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

REAR DIFFERENTIAL CASE AND COVER

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT122260	1	Washer	-
2	-	2	Part 2	(<service-part>AT146229</service-part> KIT, SHIM) ( AT122254 - NO LONGER AVAILABLE)
3	-	3	Part 3	(<service-part>AT146229</service-part> KIT, SHIM) ( AT122255 - NO LONGER AVAILABLE)
4	-	1	Part 4	(<service-part>AT146229</service-part> KIT, SHIM) ( AT122256 - NO LONGER AVAILABLE)
5	AT122218	1	O-Ring	-
6	AT122966	1	Bolt	(SUB FOR AT122163)
7	AT122816	2	Shim	-
8	2025180	1	Cage	(SUB FOR AT122177)
9	12H301	6	Lock Washer	1/2"
10	19M7403	6	Cap Screw	M12 X 35
11	-	2	Part 11	(<service-part>AT146230</service-part> KIT, SHIM) ( AT122266 NO LONGER AVAILABLE)
12	-	3	Part 12	(<service-part>AT146230</service-part> KIT, SHIM) ( AT122268 NO LONGER AVAILABLE)
13	-	2	Part 13	(<service-part>AT146230</service-part> KIT, SHIM) ( AT122267 NO LONGER AVAILABLE)
14	AT264224	1	O-Ring	(SUB FOR AT122159)
15	AT122223	1	Seal	-
16	AT133874	1	Tapered Roller Bearing	(SUB FOR AT122261 AND JD37086)
17	JD37071	1	Tapered Roller Bearing	(SUB FOR AT122270)
18	-	1	Part 18	( AT122253 NO LONGER AVAILABLE)
19	AT122404	1	Gear	-
20	AT122179	2	Gear	-
21	AT122202	4	Pinion	-
22	AT122173	1	Sun Gear	-
24	AT122172	1	Housing	-
25	AT122324	4	Shim	(SUB FOR AT122220)
26	AT122877	1	Yoke	-
27	AT122258	2	Plate	-
28	AT122257	4	Plate	-
29	AT123251	4	Pin	-
29	-	4	Part 28	( AT122250 NO LONGER AVAILABLE) (SUB COMPLETE SET OF (4) AT123251 WHEN FOR AT122250)
30	AT122230	4	Bolt	-
31	19M7361	8	Cap Screw	M12 X 50
32	TH100009	2	Tapered Roller Bearing	(SUB FOR AT122220)
33	19M8029	12	Cap Screw	M16 X 30
35	AT122169	1	Housing	-
36	AT122176	2	Flange	-
37	AT122160	2	O-Ring	-
38	19M7403	12	Cap Screw	M12 X 35
39	AT122188	2	Nut	-
41	AT122500	2	Lock Washer	-
42	19M8231	1	Cap Screw	M12 X 16, (SUB FOR TH100522)
44	AT122251	2	O-Ring	-
45	AT122252	2	O-Ring	-
46	AT122187	2	Piston	-
47	AT122186	2	Plate	-
48	AT167648	2	Plate	(SUB FOR AT122185)
51	AT122190	1	Cover	-
52	19M7402	18	Cap Screw	M10 X 25
53	12M7066	18	Lock Washer	10 mm
55	AT122244	2	Bleed Valve	-
57	T111819	2	O-Ring	-
58	TH101300	1	O-Ring	-
59	AT122161	1	Fitting Plug	-
60	TH101292	2	Fitting Plug	-
61	AT122259	1	Plate	-
62	12H301	6	Lock Washer	1/2"
63	19M8011	6	Cap Screw	M12 X 30
